Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles

China Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles supplier
Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles supplier Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles supplier Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles supplier

Large Image :  Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles

Product Details:

Place of Origin: Zhejiang, China
Brand Name: FAMOUS
Certification: ISO9001:2008
Model Number: OWN

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 46280 per set
Packaging Details: Standard exported package
Delivery Time: 2 Months
Payment Terms: T/T,L/C
Supply Ability: 50 Sets/Year
Detailed Product Description
Product Name: C Z Purlin Roll Forming Machine Coil Thickness: 1.2-3.1mm
Working Speed: 10.5-25m/min Main Motor: 16KW
Transmission: Transmission By By Chains 1.2Inch Double Line Hydraulic Pressure: 15-20MPa
High Light:

roll forming equipment

,

double layer roll forming machine

Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles





Technical specifications and details



Manual decoiler:

Un-power; manual decoiler; max. Capacity: 5000kg

Suit for coil inner-diameter: 508mm, suit for coil max outer diameter: 1000mm

Manual power expands the coil inner surface.

The decoiler out form reference:





Roll forming machine:

1) Number of forming steps: 17 steps

2) Material of shaft: 45# steel hardening and tempering treatment. Outer diameter 85mm ,total solid

Tolled shafts

3) rollers: Material is high grade No.45 forged steel, with digital-controlled procession. The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers.

4) Main motor power: 4 Kw with cyclical planetary gear speed reducer

5) The plating chromium’s thickness on the surface of rollers: 0.05mm

6) Main stand: 350# H steel welded structure Wall plate thickness: 14mm the main frame of machine is welded separately and the outside wall is connected by screw after being rot blasted on the surface.

7) Chain and gear move the line, motor drives. All working actions are controlled by PLC electric cabinet automatically.

8) Suitable power voltage:380V/50HZ/3Phase (can de designed according to buyer’s requirement)

9) Line working speed (Forming speed):about 15-18 m/min (without cut time)

10) Main machine motor power: about 5.5KW(Depend on final design)

11) Dimension of the machine: 9000mmx1200mmx1200mm

12) Weight of the machine: about 5000kg







 Hydraulic Cutting:

1) Adopts post cutting, Stop to cut;

2) The cutting blade material is Cr12 with quenched treatment.

3) Adopts welded frame for good rigidity.

4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

5) The power of cutting is provided by hydraulic station.

6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.



 Hydraulic station:

1) It supplies the power for the hydraulic cutter.

2) All hydraulic accessories are all use Chinese famous brand products.

3) Hydraulic motor power: 3KW



PLC Control System:

1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Delta converter adjusts speed technology, realize the automatic production.

3) Text screen is input and cancelled the working data.

4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.

5) Encoder count, having function of count and measuring length.

6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)





Product Rack (un-powered):

1) They are used to put the final product when product coming out from cutting device.

2) Two pieces, each piece length is 1m, total length is 3 meters.

3) Collect the final product and final products are convenient to be stacked by workers.

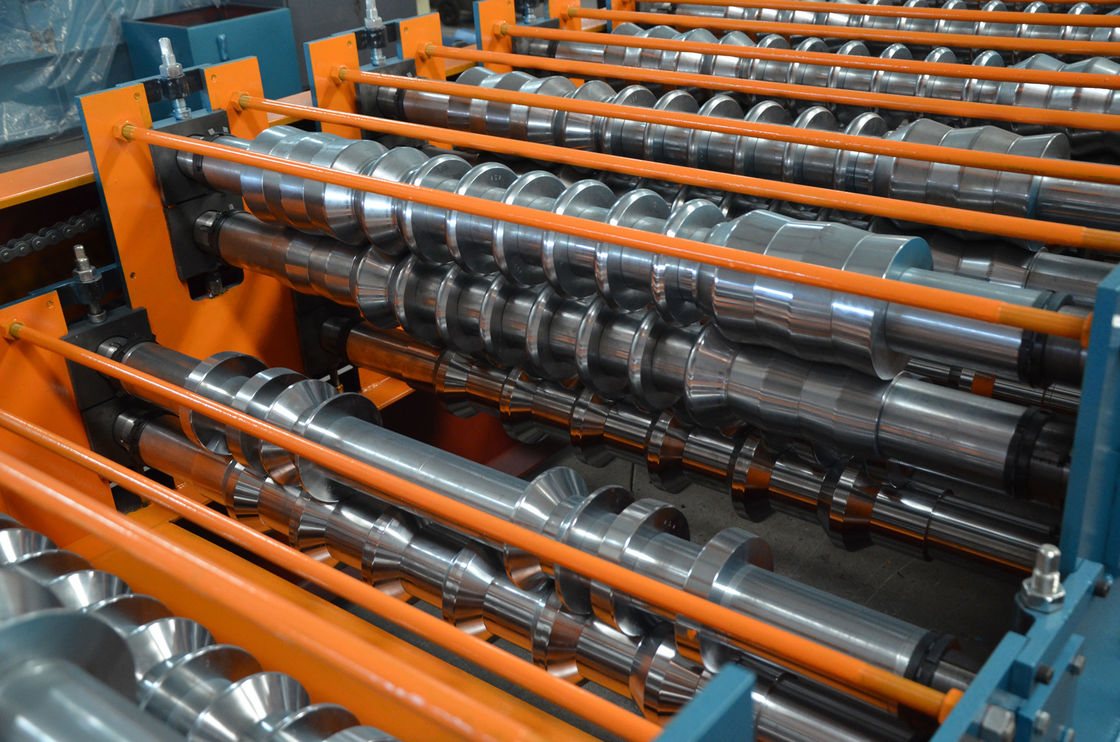

Machine Pictures:



Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles 0Roof Sheet / Roof Tile Roll Forming Machine For Metal Roofing Tiles 1
