Fully Automatic Aluminum Aerosol Can Production Line 300-500 Cans/Min

Name: Fully Automatic Aluminum Aerosol Can Production Line 300-500 Cans/Min
Brand: FAMOUS Steel Engineering Company
SKU: AM01
Price: 550,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: FAMOUS

Model Number: AM01

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $100000-1000000

Delivery Time: 10-12 months

Payment Terms: L/C, T/T, D/P

Get Best Price

Product Details

Product Description

Highlight:
                                                fully automatic aerosol can production line, aluminum can manufacturing machine, high-speed aerosol can forming machine

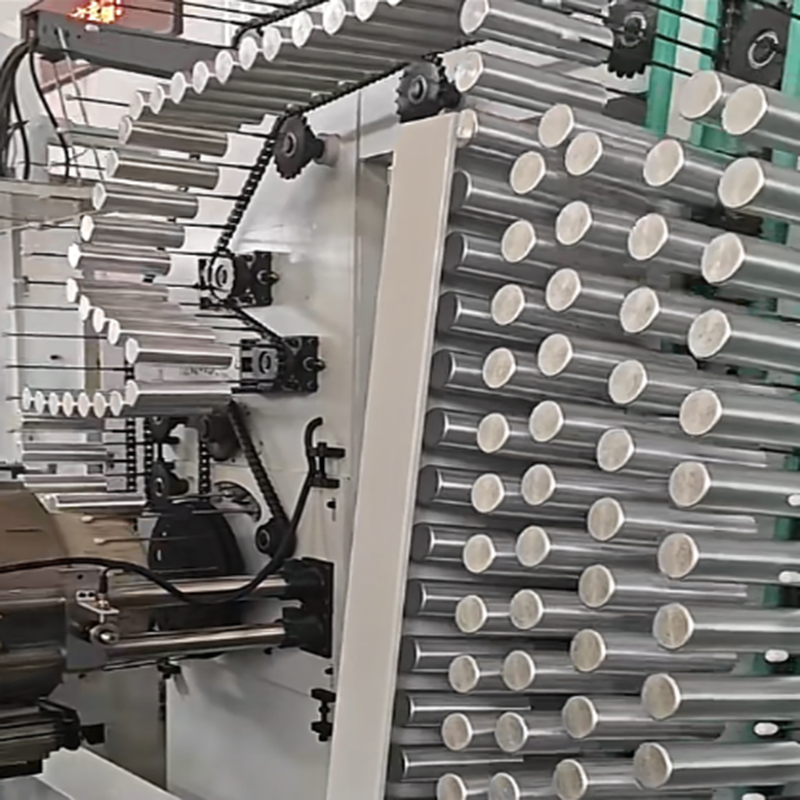

Fully Automatic Aluminum Aerosol Can Production Line 300-500 Cans/Min

Product Overview

Fully Automatic Aluminum Aerosol Can Production Line

Our aluminum aerosol can production line is a state-of-the-art, fully automated manufacturing solution designed for
high-efficiency, precision, and durability. Ideal for producing cosmetic, pharmaceutical, industrial, and household aerosol cans,
this production line ensures consistent quality, leak-proof performance, and compliance with international standards.

Technical Specifications:
* Production Speed: 300-500 cans/min
* Can Capacity Range: 50ml – 750ml
* Material: High-grade aluminum (AA3003/AA3104)
* Thickness Control: ±0.01mm precision
* Power Supply: 380V/50Hz (customizable)
* Automation Level: Fully automatic (PLC control)
* Certifications: ISO 9001, CE, GMP (for medical-grade)

Fully Automatic Aluminum Aerosol Can Production Line 300-500 Cans/Min 0

No	Machine Name	Key Function	Technical Highlights
1	Extrusion Press Machine	Forms aluminum slugs into precise cups	±0.01mm tolerance, servo-driven, 1M+ mold cycles
2	Trimming Machine	Trims cup edges to uniform height	Automatic scrap recycling, adjustable speed
3	Washing Machine	Removes oil and contaminants (3-stage cleaning)	Alkaline → acid → DI water, FDA-compliant
4	Accumulator	Balances production flow between stations	Reduces downtime by 15–20%
5	Internal Coating Machine	Applies corrosion-resistant epoxy coating inside cans	FDA-approved materials, spray precision ±2µm
6	Lacquer Curing Machine	Dries/cures internal coating (UV or thermal)	±2°C temp control, energy-efficient
7	Base Coating Machine	Applies primer for print adhesion	Uniform layer, quick-drying
8	Printing Machine	Adds logos/designs (flexographic or digital)	6–8 colors, 1200 dpi resolution
9	Varnish Machine	Applies protective gloss/matte finish	Scratch-resistant, customizable
10	Drying Oven	Dries printed/varnished cans	Multi-zone IR heating, adjustable length
11	Necking Machine	Forms threaded necks (2–3 stages)	Precision: ±0.05mm, servo-controlled
