Payment & Shipping Terms:
|Used For:||Cold Room||Effective Width:||950mm|
PU sandwich panels is a kind of board used for enclosing structures, which has good heat insulationand higher intensity.It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems.
Our sandwich panel is new type of polyurethane rigid foam used as an insulating material for refrigerators and refrigerated display counters. It consists of partially and fully formulated polyol blends containing all the raw materials and auxiliaries necessary for foaming.

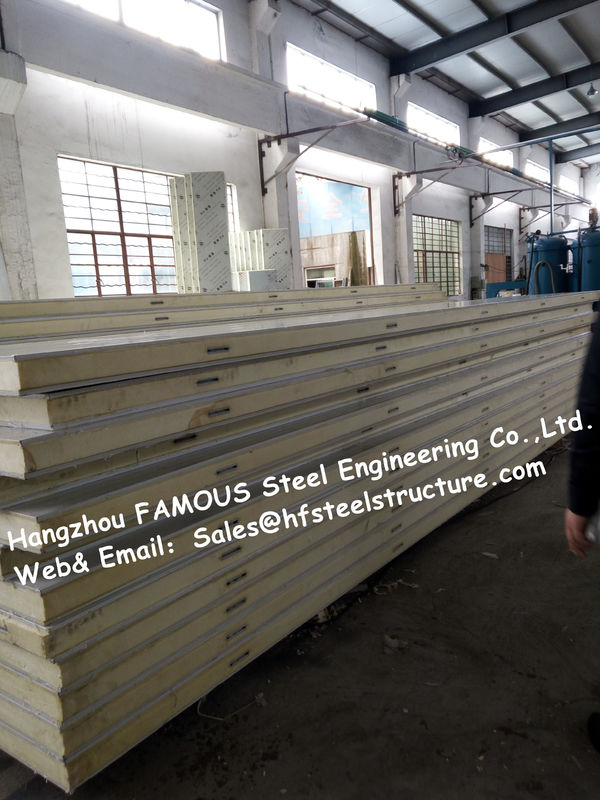

|Cold Room Polyurethane ( PU) Sandwich Panels|
|Thickness||50, 75, 100, 150 , 200 mm|
|Density||38 - 40 – 43 – 46 kg / m3|
|Joint||Camlock (tongue and groove)|
|Plate||External is color steel or stainless steel or Aluminium (Stucco embossed or pre-painted)|
|Usage||Wall & Floor & Ceiling|
|Door||Sliding door and Swing door|
Density:PU sandwich panel is produced by injecting PU with a density of 42kg/m3 between 2 metal sheets with formed surfaces to increase durability. Polyurethane injected panels with 42 kg / m3 density, locking mechanism, proper for all kinds of refrigerated cold storage rooms.
(1) Condensing unit: Bitzer, Copeland, Maneurop, Fusheng
(2) Evaporator: KELTESS air-cooler.
(3) Insulation Panel: PU, EPS.
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
1. Broad Availability ,wide range of material for your choice
2. Outstanding Formability with beautiful appearance with rich color
3. Superior Durability
4. Light weight , easy to transportation ,easy to install
5. Fireproof , heat preservation ,sound isolation
Walk in freezer Size and temperature can be made according to the customers' requirements
0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezer Storage
-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer
1). Swing door and Sliding door available.
2). Swing door: Manual, Automatic available etc.
3). Door panel made with special pressing technology PU material.
4). Door frame: color steel or stainless steel.
5). With Heater and anti-stuck system.
Hinged doors are of various types such as single leaf or double leaf , overlapping or flush . These doors are always open in the outward direction towards either left or the right .
DETAILS OF THE PANEL JOINT
Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
* Cam-lock design fastener to install with the cold room tightly and strongly
* Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result
ABOUT THE GROUP
Hangzhou FAMOUS Steel Engineering Co.,Ltd. focus on various structural steel construction and steel-related products supplying. Under support of structural giant Hongfeng Industrial Group, FAMOUS received a lot of foreign projects from project engineering, fabrication, logistic and installation guidance etc. and become more professional in foreign project operation, specially in US-EU standard engineering and project management aspects.
