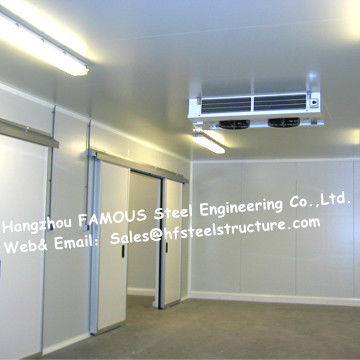

Insulated Walk In Freezer And Chiller Cold Rooms for vegetables Individual Quick Freezer Made in China
Polyurethane foam is been sandwiched between the two outer skins and hence is known as PU sandwich panels. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.. Those two layers are available i profile with zinc coated, galvanized steel, embossed aluminum, stainless steel or other material sheets.
|Cold Room Polyurethane ( PU) Sandwich Panels
||50, 75, 100, 150 , 200 mm
||38 - 40 – 43 – 46 kg / m3
||Camlock (tongue and groove)
||External is color steel or stainless steel or Aluminium (Stucco embossed or pre-painted)
||Wall & Floor & Ceiling
||Sliding door and Swing door
Size of the plan of the Polyurethane (PU) Panel:Specifications, to meet the different requirements of customers. Characterized as follows: thermal insulation performance, light weight, high strength, corrosion-resistant, anti-aging, beautiful appearance.
1. Broad Availability ,wide range of material for your choice
2. Outstanding Formability with beautiful appearance with rich color
3. Superior Durability
4. Excellent Cost Effectiveness
5. Light weight , easy to transportation ,easy to install
6. Fireproof , heat preservation ,sound isolation
1.Suitable for low and high temperature controlled applications
2.Offer high thermal performance, maintaining the temperature of the internal environment
3.Significantly reduce energy usage and running costs
4. Provide a panel system which effectively controls temperature flows, vapour and humidity levels
Walk in freezer Size and temperature can be made according to the customers' requirements
0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezer Storage
-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer
DETAILS OF THE PANEL JOINT
Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
* Cam-lock design fastener to install with the cold room tightly and strongly
* Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result
1). Swing door and Sliding door available.
2). Swing door: Manual, Automatic available etc.
3). Door panel made with special pressing technology PU material.
4). Door frame: color steel or stainless steel.
Hinged doors are of various types such as single leaf or double leaf , overlapping or flush . These doors arealways open in the outward direction towards either left or the right .
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, communication equipment,ship manufacturing and more.
ABOUT THE GROUP
Hangzhou FAMOUS Steel Engineering Co.,Ltd. focus on various structural steel construction and steel-related products supplying. Under support of structural giant Hongfeng Industrial Group, FAMOUS received a lot of foreign projects from project engineering, fabrication, logistic and installation guidance etc. and become more professional in foreign project operation, specially in US-EU standard engineering and project management aspects. The company covers an area of 360,000 sq.m. with registered capital of 100 million Yuan and the total assets of 970
million Yuan. It owns advanced professional production equipment for the all automation production line of H type that is most advanced at home, pipe truss structure, boxbeam production lines, CNC hydraulic punching posterior cutting C type steel, Z type steel production lines, vertical seam 360-degree whipstitch roof board of hidden button type, weather board production lines and metal sandwich panel production lines, etc.
