Home > products > Insulated Sandwich Panels > Waterproof Insulated Sandwich Panels / Corrugated Roofing Metal Sheets

Waterproof Insulated Sandwich Panels / Corrugated Roofing Metal Sheets

Product Details

Place of Origin: Zhejiang, China

Brand Name: HONFENG

Certification: ISO9001:2008

Model Number: OWN

Payment & Shipping Terms

Minimum Order Quantity: 100 Square Meter

Price: USD6~USD15 per Square Meter

Packaging Details: Seaworthy packings into container or bulk vessel

Delivery Time: Based on client's needs

Payment Terms: L/C,T/T

Supply Ability: 200,000 Square Meter per Month

Get Best Price
Highlight:

metal roof sheet

,

corrugated metal roofing sheets

Core Material:
Polystyrene
Core Material Thickness:
70mm
Density:
15kg
Steel Thickness:
0.75mm
Steel Color:
Grey
Effective Width:
950mm
Core Material:
Polystyrene
Core Material Thickness:
70mm
Density:
15kg
Steel Thickness:
0.75mm
Steel Color:
Grey
Effective Width:
950mm

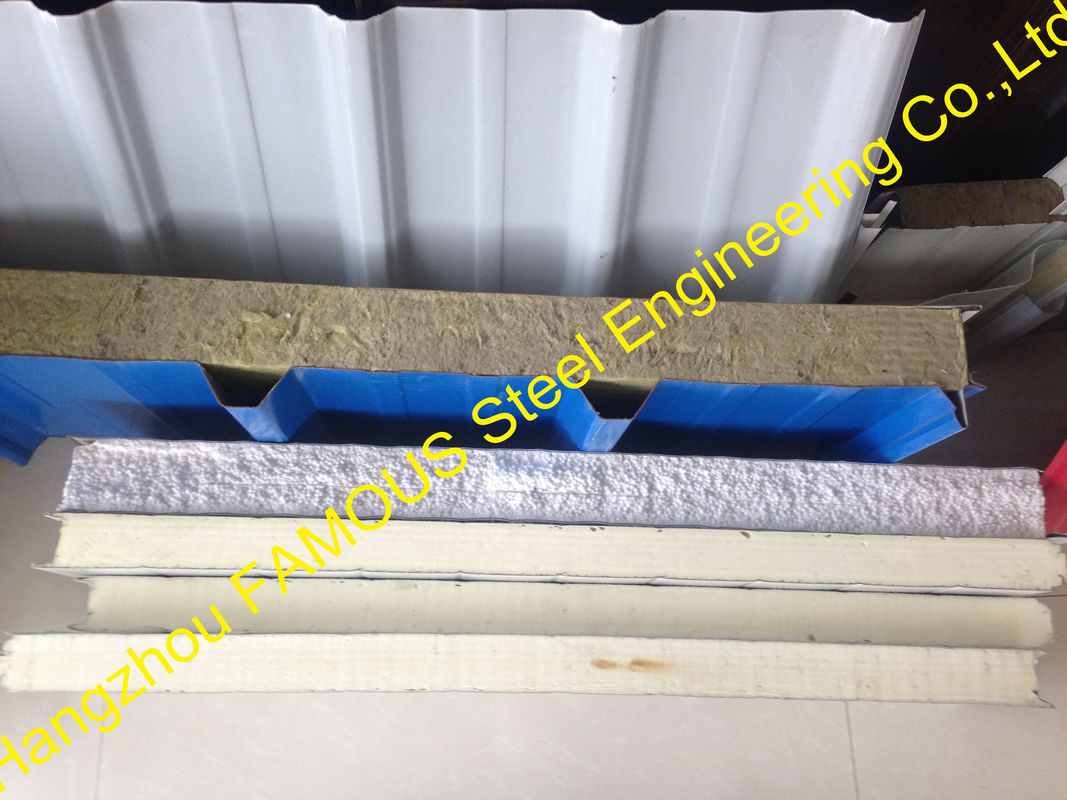

Waterproof Insulated Sandwich Panels / Corrugated Roofing Metal Sheets

Waterproof Insulated Sandwich Panels / Corrugated Roofing Metal Sheets



EPS Panel

  Semi-fireproof material, flame retardant material EPS Panel



 Kwang Steel’s cap panel product, which uses semi-fireproof, phenol resin, and foaming

polystyrene, is not burnt in fire.

 Fire insurers laboratories of Korea recognized Kwang Steel cap panel, which passed strict fire

test, as fire safety product.



Perfect water proof: Surface waterproof function is excellent and it shows excellent waterproof

andhumidity proof effect rainy season.

Excellent economical efficiency: EPS Panel is economic because of product's standardization,

quick construction and labor free reduction.

Sanitary environment : EPS Panel's surface is the zinc galvanized steel plate painted with fluorine

or silicon polyester, which creates sanitary environment because it can be easily cleaned

up.



Advantages :

1 Easy for installation
2 Thermal Insulated
3 Light Weight
4 Repeated use

5 water resistant



950mm wall sandwich panel & 970mm roof sandwich panel

Type

EPS sandwich panel (self- insert connection)

All the screw and accessories are available



Dimensions

Total thickness

50,75,100,120,150,200mm

Width

950mm / 970mm / 1150mm

Length

Less than 11.8m







External face

Material

ppgi

Thickness

0.3-0.8mm

Thickness of the zinc

80g/m2

Corrosion protection

Galvanized

Coating

Polyester

Thickness of coating

20 micron

Color

According to the RAL

Pattern

Nearly Plain





Insulation

Material

EPS

Thickness

50,75,100,120,150,200mm

Density

6-24kg/m3

Thermal conductivity

0.02~0.03w/mk







Internal face

Material

ppgi

thickness

0.18-0.9mm

Thickness of zinc

80g/m2

Corrosion protection

Galvanized

Coating

Polyester

Thickness of coating

7micron

Pattern

Plain

Shipping terms

Package



Delivery time

Within 5-10 days after your prepaid





Payment terms

T/T ,L/C at sight
