Storage Pir Sandwich Insulation Panel , Cold Room Panels Fireproof

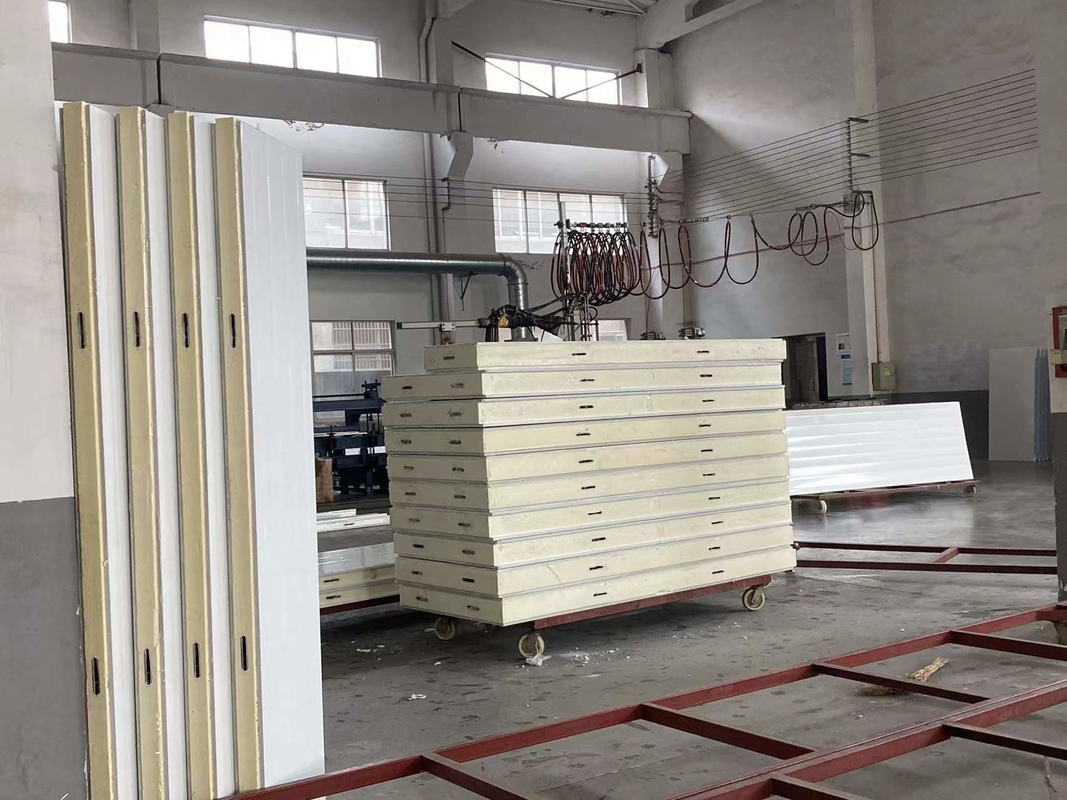

: Large Image : Storage Pir Sandwich Insulation Panel , Cold Room Panels Fireproof

Product Details:

Place of Origin:	Mainland of China
Brand Name:	FAMOUS
Certification:	CE,ISO9001,SASO,SGS
Model Number:	960mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1500/ set
Packaging Details:	Standard seaworthy packing
Delivery Time:	within 20-30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 sets per month

Contact Now

Detailed Product Description

Insulation Material:	PU/PIR	Thickness:	50, 75, 100, 120, 150 , 200 Mm
Refrigerating Unit:	, Copeland Compressor, Evaporator, Condensor Etc.	Power Voltage:	220v,380v,420v,460v
Joint:	Camlock (tongue And Groove)	Control System:	Temp,humidity,defrosting Auto-controlled
High Light:	pir sandwich insulation panel , fireproof sandwich insulation panel , pir cold room panels

Specification

Product name	Cold storage sandwich panels
Thickness	40/50/75/80/100/150/200mm
Effective width	920/1000/1120mm
Length	1-11.8m
Surface material	Color Coated Galvanized steel sheet/ Stainless steel / Aluminum plate
Core material	Polyurethane/PUR/PIR
Density	40-45kg/m3
Color	white gray,silver gray,sea-blue,crimson and so on
Advantage	Thermal insulation / Fireproof
Application	Cold storage ,Cold room , Cold chain warehouse

Cold storage panels

There have two popular types of cold room panels. One is PU panel, another is PIR panel.

The differences of these two types are fireproofing grade, cam lock, and installation cost and lifetime. Our PU panel can reach B2 fireproofing grade, with durable zinc-coated cam lock, and 42 kg/m3 high density PU foam, and very easy to install. It can keep cold room lifetime to 20 years at least.

Details

1. Panels thickness

Panels thickness	heat transfer coefficient (w/m2·k) PU/PIR	Temperature difference inside and outside cold room	Suitable temperature for cold room
75mm	0.267/0.3	40°C	-5~25°C
100mm	0.2/0.23	50°C	-15~25°C
150mm	0.133/0.15	70°C	-25~25°C
180mm	0.11/0.125	80°C	-35~25°C
200mm	0.1/0.113	90°C	-50~25°C

2. Panels surface steel

Types	Color plate	Baosteeel color plate	Galvanized steel	Aluminum steel	Salinization steel	Stainless Steel 304
Steel thickness(mm)	0.426, 0.476	0.5, 0.6 0.8	0.8, 1	0.7, 0.8	0.6	0.5, 0.6, 0.7 0.8,1
Features	Widely use	Famous brand	More durable	Looks nicer	For seafood	For seafood, medicine
