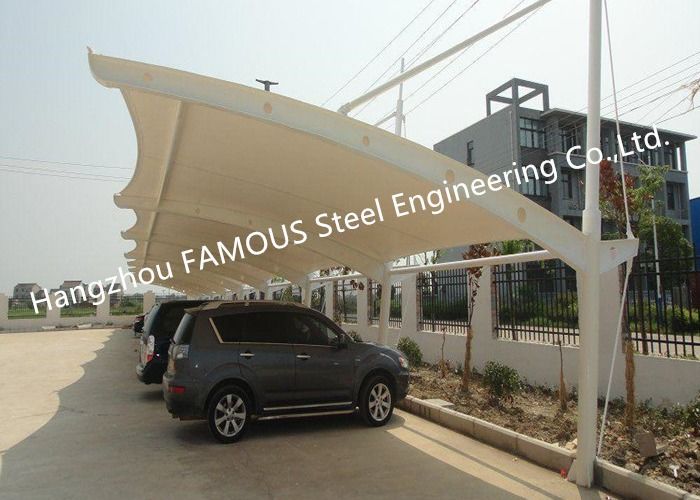

Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed

China Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed supplier
Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed supplier Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed supplier Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed supplier Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed supplier Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed supplier

Large Image :  Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed

Product Details:

Place of Origin: Zhejiang, China
Brand Name: FAMOUS
Certification: ISO9001:2008, SGS, etc.
Model Number: OWN

Payment & Shipping Terms:

Minimum Order Quantity: at least 20 square meters
Price: USD35~USD55 per square meters
Packaging Details: Seaworthy packings into container or bulk vessel
Delivery Time: Based on client's needs
Payment Terms: L/C,T/T
Supply Ability: 600,000 square meters per Year
Contact Now
Detailed Product Description
Features: UV Resistant, Waterproof, Self-cleaning, Fire Retardant Type: Car Parking,Garages, Canopies,Shelter, Carports Etc
Materials: Steel Q235B,Q345B, Aluminum Or Custom Required Etc Surface Treatment: Galvanized Or Or Painted
Sail Material: PVC, PVDF, PTFE ,ETFE Coated Roof Cover: 1000g/sqm PVDF
Color: As Client's Required Waterproof Index:: >3000mm
Service Life:: More Than 18 Years Ground Situations: Grassland,earth Land,asphalt,cement Ground,marble,etc.
Frame Finishing: Powder Coated Or Custom Required
High Light:

PTFE Tensile Membrane Structure

,

Waterproof Steel Tensile Membrane Structure

,

Tensile Membrane Metal Carport Shed

Waterproof steel carport shed PVDF/PTFE tensile membrane structure car parking shade

PVDF membrane structure material used in membrane structure construction is a kind of film material with good strength and flexibility. It is made of fiber woven into fabric substrate and processed with resin as coating material on both sides of the substrate.The fixed material, the central fabric substrate is divided into polyester fiber and glass fiber, and the resin used as the coating material is polyvinyl chloride resin (PVC), silicone and polytetra fluoroethylene resin (PTFE). In terms of mechanics, the fabric substrate and the coating material respectively have the following functional properties.



Fabric substrate - tensile strength, tear strength, heat resistance, durability, fire resistance.

Coating material - weather resistance, antifouling, processability, water resistance, resistance to products, light transmission.



Product Name Carport Tent Size Customized
Color Customized Application Shed
Cover Material PVDF Building Membrane Frame Material GB Q235 Steel
Connector Strong hot-dip galvanized steel Wind load Max. 120km/h (can be reinforced)
Snow load 75kg/sqm Farbric Thickness 0.83±0.02mm
Weight of Fabric(g/㎡) 1050g/㎡ Yarn Count(yarn/cm) 12/12 yarn/cm
Tear Strength 520-580N(DIN53363) Tensile Strength 5000-5500N(DIN53354)
Temperature Resistance -30℃ - +70℃ Life Span

15 Years







Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed 0

PVDF Coated Fabrics Car Parking Shades, Awnings & Canopies PVDF Coated Fabrics Car Parking Shades, Awnings & Canopies



Advantages of FAMOUS's Car Parking Shades & Canopies Fabrics:
1. Aesthetically Pleasing
2. Easy to Maintenance
3. Long Life
4. High Tear Strength
5. Flame Retardant
6. UV Resistant
7. Ease of Welding- can be formed in any shape and size
8. 100% Recyclable



Applications:
1. Car Parking Shades
2. Front fascia canopy
3. Classic sun sails
4. Winter garden shading
5. Sun blinds or area curtains
6. Gastronomy umbrellas
7. Sun Umbrellas
8. Market Umbrellas
And so on…

Waterproof Steel PVDF PTFE Tensile Membrane Structure Car Parking Shed 1





Packaging Details

1) Steel frames are packed in air bubble film.
2) Roof materials are packed in PVC carry bag.
3) Other small parts are packed in box.
4) Or on your requests.
