Product Details:
Payment & Shipping Terms:
|
Model Number: | HD200 | Material: | Steel |
---|---|---|---|
Specification: | Q345B Or Q460C | Surface Treatment: | Galvanized Or Painted |
Width: | 4.6m, 7.3m | Installation: | Hoisting In Site |
Carry Capacity: | 80 Tons | Q345B-Q460C: | AISI, ASTM, BS, DIN, GB, JIS |
Color: | Grey Or Green | ||
High Light: | UK British Steel Bailey Bridge,BS Standard Steel Bailey Bridge |
Introduction: Compact 200 Modular Panel Bailey Steel Bridge (C200) system is FASEC’s most widely used modular bridging product and is available for both permanent and temporary applications. With a heritage stretching back over 70 years to the original Bailey Bridge system, the system's extensive use worldwide pays testament to its versatility. The compact bridge system uses standard, interchangeable steel components to provide robust, rapidly deployed and erected solutions for; permanent bridges, temporary bridges, rural bridges, access bridges, footbridges and emergency and contingency bridging applications. Emergency and contingency bridge stocks, held in country, allow for immediate availability when needed.
The C200 bridge can carry up to two lanes of traffic, with options for internal and external foot walks, and can be configured as a single or multiple span compact bridge. Multi-span solutions are supported on intermediate piers, meaning that there is no limitation to the length the C200 can bridge; this makes it a versatile solution suited to a wide range of applications. Floating bridge solutions, using pontoon systems and bespoke connections, have also been achieved, as well as jetty applications for ferry and barge access.The C200 can also be adapted to serve as pipe or utility support bridges suited to carrying, for example, oil, water, gas pipes, conveyors and other services and is the most adaptable and versatile solution in the FASEC range.

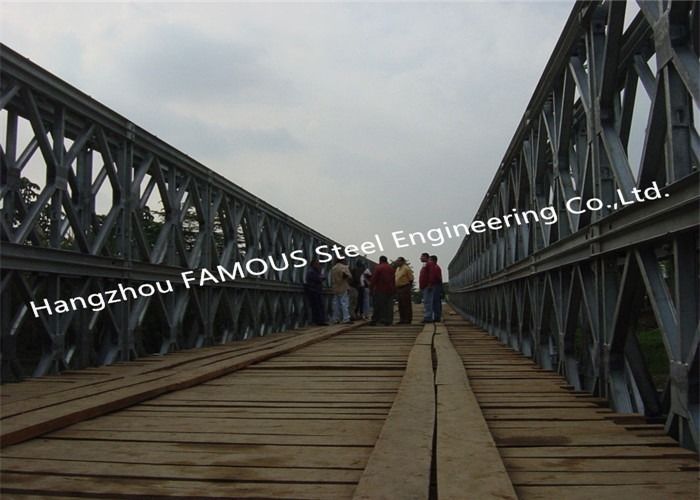

Compact-200 Bailey Bridge
Model Alias:200-Type; HD200;CB200,ZB200
Single lane:Bridge deck net width 3.15m,Maximum free span length:60.96m
Extra width single lane:Bridge deck net width 3.15m,Maximum free span length:60.96m
Standard Double lanes:Bridge deck net width 7.35m,Maximum free span length:45.72m
Panel Dimension:3000MMX1400MM(Holes center distance)
Specifications:
Compact 200 Modular Panel Bailey Steel Bridge Equiv. | ||
Type | Pedestrian way / Single lane | Double lane |
Width: | 3.15m-4.2m | Standard roadway:7.35M |
Maximum Free Span: | 60.96M | 45.72M |
Deck | Anti-skid Steel/Timber/Concrete/Epoxy Mixture Material | |
Loading Capacity | design according to different requirements,like people walking, 40TONNES,AASHTO HS20,HS25-44,BS5400HA+30HB,Truck-60,Trailler 80,etc. Customized required loads capacity,etc. | |
Corrosion Prevention | Original Painted Or Hot Dip Galvanized,Army Blue,etc. Customized colors. | |
Bridge Type | 200-Type(CB200, Compact-200,ZB200,HD200,etc) | |
Advantages |
Low Cost;Easy Transportation;Interchangable;Quaickly-installed, repeatly used,etc |
Advantages we have:
1.Standard bridge equipment, adopted extensively and the most popular in the world.
2.Possessing the features of simple structure, convenient transport, speedy erection
and easy disassembling.
3.Heavy loading capacity, great stability and long service life being capable of an alternative span, long capacity and mixture form to erect all kinds and usage of temporary bridges, emergency bridges and fixed bridges.
4.Few components, light weight and low cost.
