Product Details
Place of Origin: Zhejiang, China
Brand Name: FAMOUS
Certification: ISO9001:2008, SGS, etc.
Model Number: OWN
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: USD1000~USD1200 per ton
Packaging Details: Seaworthy packings into container or bulk vessel
Delivery Time: Based on client's needs
Payment Terms: L/C,T/T
Supply Ability: 600,000 tons per Year
Material: |
Q345B Steel |
Surface Treatment: |
Painted Or Hot Dip.etc |
Size: |
According To Client's Need |
Installation: |
Lifted Into Place By Hand Without Crane, Easier Construction.etc |
Multi-use: |
Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. |
Carry Capacity: |
Resist Strong Wind And Earthquake, Bears Heavy Snow.etc |
Model Number: |
CB100(321-Type)&HD200 |
Grade: |
Q345B-Q460C |
Q345B-Q460C: |
AISI, ASTM, BS, DIN, GB, JIS |
Color: |
Army Blue, Light Gray, Hot Galvanized Or Customized.etc |
Material: |
Q345B Steel |
Surface Treatment: |
Painted Or Hot Dip.etc |
Size: |
According To Client's Need |
Installation: |
Lifted Into Place By Hand Without Crane, Easier Construction.etc |
Multi-use: |
Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. |
Carry Capacity: |
Resist Strong Wind And Earthquake, Bears Heavy Snow.etc |
Model Number: |
CB100(321-Type)&HD200 |
Grade: |
Q345B-Q460C |
Q345B-Q460C: |
AISI, ASTM, BS, DIN, GB, JIS |
Color: |
Army Blue, Light Gray, Hot Galvanized Or Customized.etc |

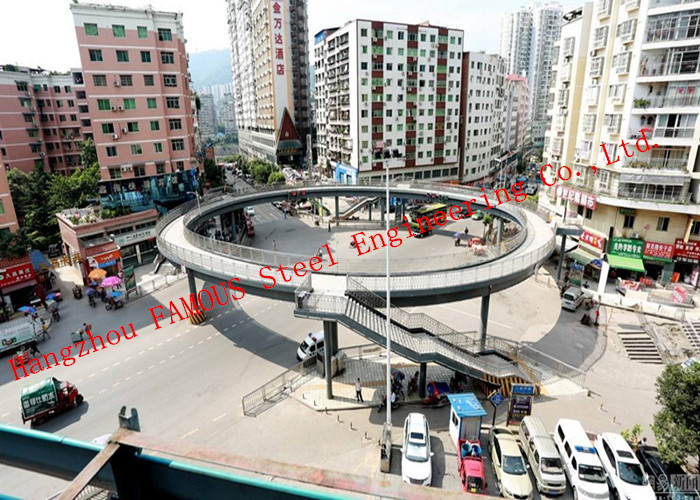

Pedestrian bridges are needed where a separate pathway has to be provided for people to cross traffic flows or some physical obstacle, such as a river. The loads they carry are, in relation to highway or railway bridges, quite modest, and in most circumstances a fairly light structure is required. They are, however, frequently required to give a long clear span, and stiffness then becomes an important consideration. The bridges are often very clearly on view to the public and therefore the appearance merits careful attention. Steel offers economic and attractive forms of construction which suit all the requirements demanded of a footbridge.
Pedestrian Bridges are built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, bridges can be built to match a wide range of pedestrian bridging applications. Because of their excellent versatility and overall value, thousands of Pedestrian bridges have been installed throughout the world.
| Width | 7.6meter or customer required sizes,etc. |
| Maximum span | 64meter single span and 200meter multi-span or customized. |
| Bridge deck | Steel composite panel,timber,concrete,etc. |
| Steel grade | Q345B (equivalent to ASTM A572) or customized materials,etc. |
| Loading capacity | 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20 |
| Corrosion | Original painted or Hot dip galvanized,army blue,etc. |
| Advantages | Price effective and technical full analysis and supports |
Features
• Adaptable - pre-engineered to match each application
• Fast - modular stocked components, open to traffic in days
• Lower Cost - an alternative to custom designed bridges
• Easy - to handle, transport, assemble, install and reuse
Advantage
Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
