Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity

China Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity supplier
Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity supplier Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity supplier Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity supplier

Large Image :  Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: working platform

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 800-1500 per set
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union,etc
Supply Ability: 20000 Pieces Per Month
Detailed Product Description
Material: Steel Structure Frames,aluminum Alloy ,etc Type: Working Platform
Application: Outside Working Cleaning, Etc Feature: Modular Steel Frames
Length: ZLP 500,630,800,1000, Or Customized Etc Surface Treatment: Normal Paint ,hot Dip Galvanized,etc
Packing: Wooden Pallet Case,or Customized As Order Color: White,gray,or Other Ral Color ,etc
Voltage: 220v,380v Lifting Height: At Least 100 Meters
High Light:

steel frame building kits

,

metal garage kits

Hot-dip Galvanized Suspended Scaffold Platform With Customized Length And Heavy Loading Capacity



Description:



    The suspension platform is the latest product developed by FAMOUS. It has more stable characteristics than the elevator when starting/stopping, which greatly improves the safety and service life of the hoist and wire rope. The product has obtained the national high-tech patent certificate. ZLP suspension platform is a new type of decorative machinery, which can replace traditional scaffolding. It is mainly used for decoration, cleaning and maintenance of high-rise building exterior walls, such as cement coating, wall tile coating, painting, glass installation, shipbuilding and repair, large ship, Bridges, dams, chimneys, etc. The use of a balanced suspension platform can reduce work intensity and increase work efficiency.
The suspension platform consists of a suspension mechanism, a hoist, a safety lock, an electric control box and a platform. They have a reasonable structure and are easy to operate. According to actual needs, it can be assembled and disassembled arbitrarily. The suspension platform is suitable for exterior wall construction, decoration, cleaning and maintenance of high-rise buildings.



Specifications:



Item

type and parameter of suspended platform

model of suspended platform

ZLP 800

ZLP 630

lifting speed

8-10m/min

9-11m/min

size of platform (lenght * width)

(2.5mx3)x0.76m

(2mx3)x0.76m



steel wire rope

structure:6x19W+1WS-8.3

Minimum breaking pull force:65KN

structure:4x31SW+NF-8.3

Minimum breaking pull force:53KN

hoist

type

LTD80

LTD63



Coiling mechanism

α type



Rated lifting power

8KN

6.3KN



motor

type

YEJ90LB-4

YEJ90L-4





power

1.8KW

1.5KW





voltage

AC380V





braking torque

15.2NM

safety lock

type

Swing arm type anti tilt



model

LS30

LS30

suspension mechanism

quantity

2 sets



adjustable height

1.15-1.75m



Protruding length of front beam

1.1-1.7m(1.5m and above 1.5m must reduce the loading weight)

quality

suspension platform weight (include hoist,safety lock,motor box)

535kg(steel material)

380kg(aluminum material)

480kg(steel material)

340kg(aluminum material)



suspension mechanism weight

2x175kg



counter weight

1000kg

900kg



full machinery weight

2000kg(steel material)

1840kg(aluminum material)

1790kg(steel material)

1650kg(aluminum material)

suspended platform work condition

temperature -20℃~+40℃



relative humidity ≤90%(25℃)



voltage deviate ±5%



Gust wind force≤8.3m/s(Equivalent to the 5 stage wind)





Component of the suspended platform: Suspended platform is mainly conmposed by suspension mechanism, hoist, safety lock, electric control box, working platform. Its structure is reasonable and easy to operate. It can be make-up and break-out according to the actual need. The suspended platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.



Products Overview:

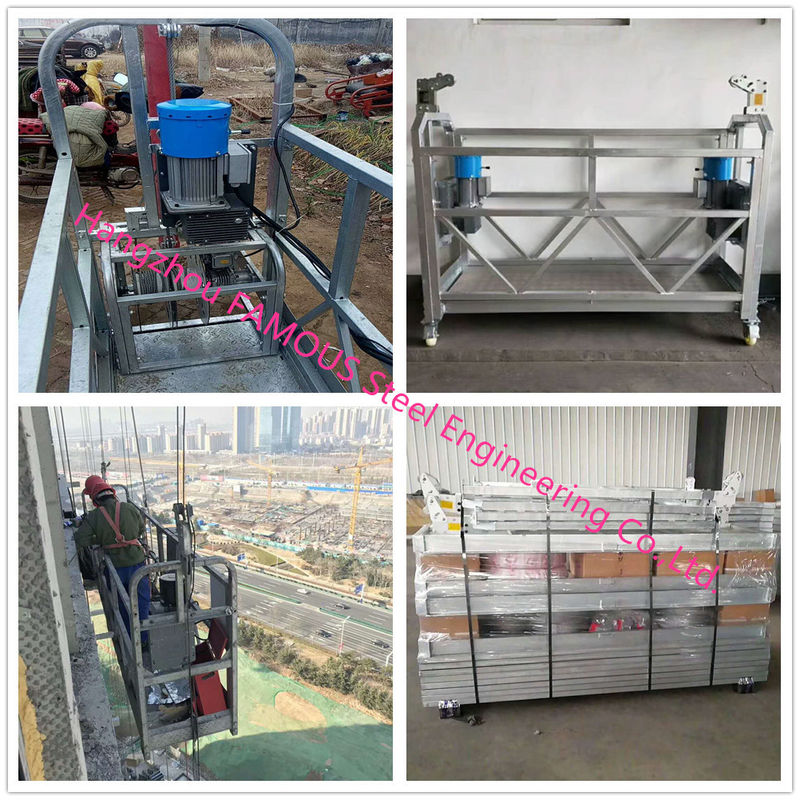

Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity 0



Usage:



1.Maintenance, repair and cleaning of high-rise buildings
2.Window cleaning and installation
3. Construction inspection and maintenance of large tanks, chimneys, dams and bridges
4, high-rise building exterior wall construction and decoration, wall panel installation and external wall structural components.
5. Repair, maintain and clean the exterior walls of high-rise buildings.
6. Construction, inspection, repair and maintenance of large projects such as chimneys, dams, bridges and headstocks.
7. Welding, cleaning and painting of large ships.
8. Make and install bulletin boards on high-rise buildings.

Hot Dip Galvanized Suspended Scaffold Platform With Heavy Loading Capacity 1
