Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing

Product Details

Place of Origin: Zhejiang, China

Brand Name: Hongfeng

Certification: ISO9001:2008;CE

Model Number: OWN

Payment & Shipping Terms

Minimum Order Quantity: 1 20'GP

Price: USD8~USD15 per Square Meter

Packaging Details: Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel )

Delivery Time: Based on client's needs

Payment Terms: L/C,T/T

Supply Ability: 200,000 Square Meter per Month

Get Best Price
Highlight:

eps sandwich panel

,

metal roof sheet

Features:
Fire,Water,Sound,Weather Proof ,etc.
Panel Thickness:
25-300mm
Mgo Thick:
3-20mm, Or Customized,
Steel Color:
White,Gray,etc
Core Material:
EPS,XPS,PU,PUR,PIR,FIBER GLASS,CEMENT,etc
Applications:
Ceiling,Wall,Floor,Partitions,etc
Type:
Sandwich Panel
Certificate:
ISO 9001,CE,ASTM,EU,US,AU,NZS,etc
Fire Rating:
A1
Features:
Fire,Water,Sound,Weather Proof ,etc.
Panel Thickness:
25-300mm
Mgo Thick:
3-20mm, Or Customized,
Steel Color:
White,Gray,etc
Core Material:
EPS,XPS,PU,PUR,PIR,FIBER GLASS,CEMENT,etc
Applications:
Ceiling,Wall,Floor,Partitions,etc
Type:
Sandwich Panel
Certificate:
ISO 9001,CE,ASTM,EU,US,AU,NZS,etc
Fire Rating:
A1

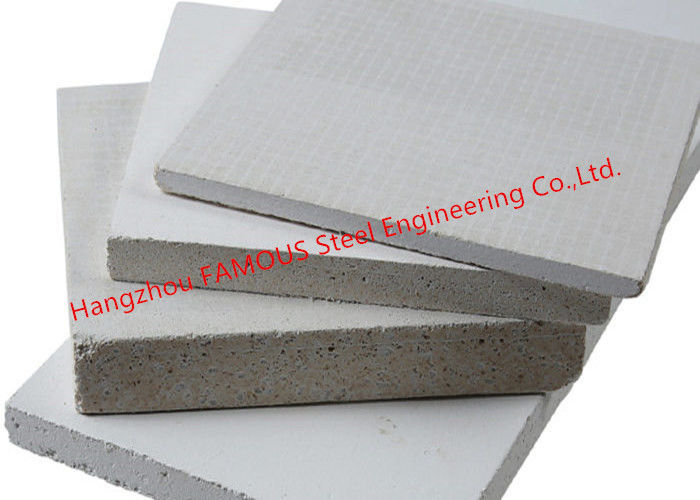

Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing



Eco-friendly Moisture Proof Magnesium Oxide Panel Lightweight Sound Absorbing Magnesium Oxide Sulfate Board

1.Products Introduction:



         Magnesium oxide, more commonly called magnesia, is a versatile mineral that when used as part of a cement mixture and cast into thin cement panels under proper curing procedures and practices can be used in residential and commercial building construction. Some versions are suitable for a wide range of general building uses and for applications that require fire resistance, mold and mildew control, as well as sound control applications and many other benefits. As an environmentally friendly building material, magnesia board has strength and resistance due to very strong bonds between magnesium and oxygen atoms that form magnesium oxide crystals (with the chemical formula MgO).

        High density fireproof magnesium oxide board is a new generation fire resistant, environment friendly construction board that is made from Magnesia and Magnesium Chloride. It can be used in number of applications such as wall paneling, partition board, ceiling board, tile backing and so on.MgO Board is the advanced technology for construction application.

Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing 0



 2.Specifications:

Fireproof Grade A1
Sizes

Standard: 1200/1220mm x 2400/2440/2700/3000/3050mm

Other: As long as width <=1220mm and length<=3660mm

Thicknesses

Standard: 3-20mm

Other: 1 step formation up to 32mm and 2 step formation: up to 64mm

Colors

Standard: white or beige ; grey

Other: any color per customer’s request

Density 900-1200 KG/CBM depending on formula
Finish 1 side smooth 1 side mat (textile or sanded)
Edge types Square, Tongue & Groove, Tapered, Beveled, Feather etc



3.Features:

High density fireproof magnesium oxide board has characteristics of Fireproof ,Waterproof ,Moistureproof,High strength,Lightweight,Anti-earthquake,Heat insulation,Sound insulation,Environmental,Mothproof.

Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing 1



4. Installation Diagram



Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing 2





Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing 3

5. Application

(1)MGO board types: Raw MGO board, Laminated MGO board (with PVC or HPL outer layer), MGO SIP (XPS/EPS) etc.

(2)In many applications, MgO boards can be used in the same ways as gypsum and cement sheathings (so it is easy to use). But MgO is much more versatile with vast application possibilities.

(3)Ceiling, ceiling linings, fascia, soffit etc.

(4)Drywall/Firewall, interior decorative cladding, exterior wall cladding, partitions, wall sheathing etc.

(5)Flooring, tile backing, floor substrate etc.

(6)Chimney flue, shaft-liner etc.



6.Advantages:



(1)Fire-resistant (UL 055 and ASTM-tested and A-rated)
(2)Waterproof (freeze/thaw-tested for 36 months)
(3)Mold/fungus/bug free (non-nutritious to mold, fungus, insects ASTM G-21)
(4)Impact-resistant (ASTM D-5628)
(5)NYC approved (MEA # 359-02-M)
(6)Silica/asbestos free
(7)Can be used in the place of traditional drywall or cement boards. No special tools required.
(8)Hard non-absorbent surface – no paper.
(9)Can be used in applications like cement-based siding.
(10)Available in colors.
(11)Energy efficient – It is removed from ore at about 25% of the temperature (400-800 °F) required to form CaO, the starting material for the preparation of slaked lime or portlandite used in common mortar and plaster.
(12)Magnesia boards have been mentioned in articles about biologically friendly construction and risks of mold infection.
(13) Comparable in cost to cement board made from Portland cement, with numerous advantages over that material for wet applications.



Eco Friendly Moisture Proof Magnesium Oxide Panels Lightweight Sound Absorbing 4
