Temperature Controlled Prefabricated Modular Cold Room Panel For Fresh Fruit And Vegetable Cold Storage

Temperature Controlled Prefabricated Modular Cold Room Panel for Fresh Fruit and Vegetable Cold Storage


Product Description
PU sandwich panels is a kind of board used for enclosing structures, which has good heat insulationand higher intensity.It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems. Designed scientifically and easy to use. It is a new type of heat insulation material for lower construction cost.Panels are in multiple varieties and specifications to meet the need of various sites and projects.
Our brand Polyurethane sandwich panels and doors are widely used in food production, quick-frozen food processing, aquatic product processing, crop storage, pharmaceutical, purification, logistics center and so on. Now the products are distributed all over the country and export to Japan, Thailand, Korea, the Philippines, Australia, Israel, Canada, South Africa and other countries.

1. Refrigeration system:
1.1 Compressor: Copeland,
1.2 Condensing units: air cooler.

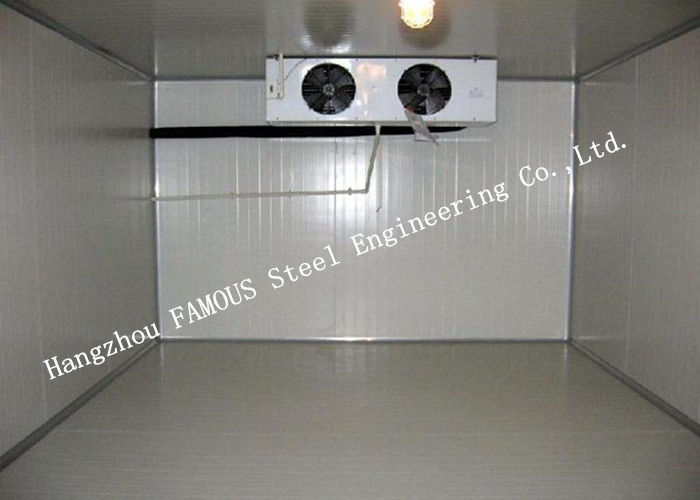

1.3 Evaporator: air cooler.
1.4 Coolant: R22 or R404a is available.


2. Electric controlling system:
Schneider electric components, digital display for temperature setting and reading, automatic and manual control, warning light for running failure.


3. PU Insulation panel, cold store panels:
3.1 Material: polyurethane (PU), metal sheet.
3.2 Density of PU: 35~42kg/m3
3.3 Metal sheet:according to requirements
3.4 Thickness of panel: 50mm,75mm,100mm,120mm,150mm,200mm


4. Cold store door, air curtain machine, lighting:
4.1 Sliding door, manual opening and closing.
4.2 When door is opened, the air curtain machine and lights in cold storage can be running automatically.



Walk in freezer Size and temperature can be made according to the customers' requirements
0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezer Storage
-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer



Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
* Cam-lock design fastener to install with the cold room tightly and strongly
* Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result


DOORS
1).Swing door and Sliding door available.
2).Swing door: Manual, Automatic available etc.
3).Door panel made with special pressing technology PU material.
4).Door frame: color steel or stainless steel.
5).With Heater and anti-stuck system.

Hinged doors are of various types such as single leaf or double leaf , overlapping or flush . These doors are
always open in the outward direction towards either left or the right .


MAIN APPLACATIONS
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, communication equipment,ship manufacturing and more.

Please Note:
Cold rooms do not include floor.Price includes delivery, installation and commissioning. Prices are available without commissioning however rooms will only be supplied with a 12 month parts only warranty in such cases. Price also includes a free site survey on recipt of order. Price shown reflects one installation and one commissioning visit. Any subsequent visits will incur an additional cost. Please ensure correct power supplies are in place before installation and commissioning visits, including isolated power supply within 1m of coldroom. Want to put the finishing touches to your chiller room? A full range of additional accessories are available. Please contact our sales team for further information.
