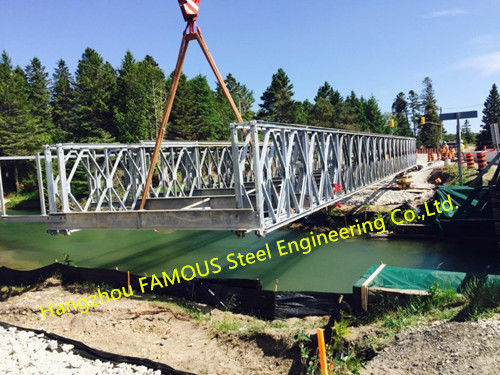

Customized Portable Modular Steel Structural Bailey Bridge Units With Versatility
Product Description:
Steel structure bridges are convenient to transport, easy and speedy for erection. They are light weighted with high strength and have the advantage of strong tension and compression resistance.
Steel structure bridges mainly used as:
1. Highway/ramp bridges: Shorten the time of construction
2. Long span bridges: For large span bridges like river and sea crossing bridges can only use steel structure.
3. Pedestrian bridges: Short erection time, easy to construct.
A truss is a triangulated framework of individual elements or members which act primarily in tension or compression. Trusses have been used in a similar way to beams in composite decks, as arches, as cantilevers or as stiffening girders to suspension bridges.
Trusses can be dressed up in many ways to modify their appearance. The box style is the preferred choice as it allows easy attachment of fencing or glazing on the sides and/or top.
The surface protection can be paint or hot-dip galvanized.
Bridge load capacity, width can be designed according to user's requirements
Carry capacity: resist strong wind and earthquake, bears heavy snow
Advantage: strong and safe, easy to install and disassemble, good insulation

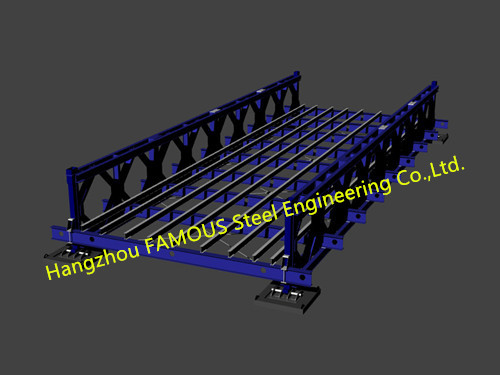

We can fabricate standard truss structure and special shape truss structure. Give us your design drawings or tell our engineers what you need, we will build up 3D and CAD drawings for you and discuss the details to make sure everything is right.
We will pre-assemble steel structures before we deliver the goods to make sure our products are right for installation.
Quick Detail:
1. Portable steel bailey bridge is convenient to transport and construct.
2. Heavy load capacity and strong structure rigidity ensure the longer fatigue lifespan.
Standing director of China's Construction and Metal Structure Association
Member of China's Steel Structure Association and Shanghai Metal Structure Industry Association
Deputy chairman of Zhejiang Steel Structure Industry Association
Specifications
Grade: Q235, Q345
Products&Service Scope: Design&Engineering Service, Steel Building,Space Frames, Portable Cabins, Tubular Steel Structures,basic building elements(built-up welded H-section , hot-rolled H-section, channel, steel column, steel beam),standard frames, secondary framing, roof & wall materials, Tempcon (sandwich) panels. And we offer Bespoke Design, construction and erection of specialist industrial steel buildings and steel frame agricultural buildings including full structural design and build covering all aspects of steelwork prefabrication.
Engineering Design Software: PKPM, 3D3S, X-steel, etc.
Application
Our experience in steel framed industrial buildings is extensive and includes the design and construction of many different steel framed structures including:
• Textile Factories on our building steel site
• Process Plants on our building steel site
• Waste Transfer Stations on our building steel site
• Agricultural and Farm Building Infrastructure on our building steel site
...
OUR ADVANTAGES
Why is it the best way to choose HONGFENG for you?
Our HONGFENG yearly sales revenue are pioneering in China structural steel industry, with plentiful of project experiences, most advanced production lines and equipments, as well as most competitive price which makes us prospect long time in steel structure design, detailing, fabrication and erection field.
1. Our buildings offer column-free interior widths of up to 90m and unlimited lengths, our buildings offer thousands of usable square meters.
2. Years of metal building design experience with a state of the art manufacturing facility and design team using the highest grade commercial GB steel produce the best pre-engineered steel buildings available at great prices and with a 25 year limited warranty. 3. Virtually maintenance free solid steel I-beam all steel construction ensures stability, strength, and durability, and is resistant to weather and rust.
4. Save your company time and money by choosing metal building construction over labor intensive, more expensive traditional brick, wood, or block construction.
5. HONGFENG supplies two ranges of steel storage buildings that are versatile, affordable and quick & easy to erect.
6. HONGFENG offer bespoke design, construction and erection of specialist industrial steel buildings and steel frame agricultural buildings including full structural design and build covering all aspects of steelwork prefabrication. Each steel building is fully customizable with a variety of ceiling lights, windows, insulation, doors, and more backed.
7. We can arrange shipment of the steel industrial building worldwide and our team of erectors take care of construction of the steel frame to the highest standards.
| Specification | |
| Material | BS standard UB, UC section steel
S460 Steel plate and S355JO seamless pipe |
| Steel plate thickness | 10-40mm |
| Quality standard | BS standard |
| Inspection | ITA and PTO on site inspection |
| Welding seam | Full penetration butt welding |
