Galvanized Steel Composite Floor Decking 1.2mm Thickness

Name: Galvanized Steel Composite Floor Decking 1.2mm Thickness
Brand: FAMOUS Steel Engineering Company
SKU: Type 1
Price: 15 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: FAMOUS

Model Number: Type 1

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: $15

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                galvanized steel floor decking 1.2mm, composite floor decking steel fabrication, structural steel decking with warranty


Material:	Galvanized Steel	Type:	Corrugated Or Trapezoidal
Color:	White	Zinc Coating:	279g/m2
Surface:	Spangle	Thickness:	1.2mm
Thickness Range:	0.8-1.2mm; Max 1.5mm	Length:	0mm-11800mm
Width:	600mm-1025mm	Thickness Tolerance:	+/-0.04mm
Width Tolerance:	+/-5mm	Zinc Coating Range:	60-275g/m2
Load Capacity:	Excellent	Fireproof:	Yes
Waterproof:	Yes

Material:	Galvanized Steel
Type:	Corrugated Or Trapezoidal
Color:	White
Zinc Coating:	279g/m2
Surface:	Spangle
Thickness:	1.2mm
Thickness Range:	0.8-1.2mm; Max 1.5mm
Length:	0mm-11800mm
Width:	600mm-1025mm
Thickness Tolerance:	+/-0.04mm
Width Tolerance:	+/-5mm
Zinc Coating Range:	60-275g/m2
Load Capacity:	Excellent
Fireproof:	Yes
Waterproof:	Yes

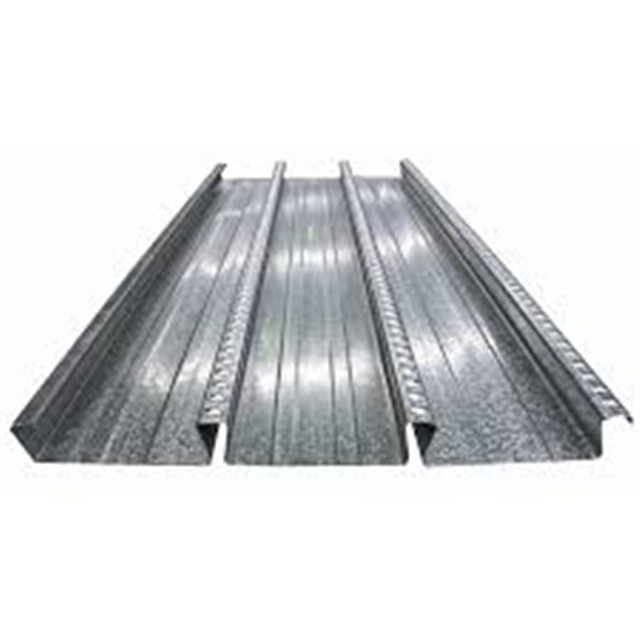

Galvanized Steel Composite Floor Decking 1.2mm Thickness

Bond-dek Metal Floor Decking / Comflor 80, 60, 210 Composite Floor Deck Equivalent Profile

Product Specifications

Attribute	Value
Project Solution Capability	3D model design
Material	Galvanized steel GB US EU AS std.
Type	Corrugated or trapezoidal
Color	White
Zinc	279g/m²
Surface	Spangle
Thickness	1.2mm

Key Features

Easy-installed, cost-saving, convenient transportation
Light-weight with excellent load capacities
Fireproof, erosion-resistant, and waterproof
Long lifespan, maintenance free with beautiful appearance

Product Description

Our galvanized composite metal floor decking offers a range of thickness (0.50mm to 1.5mm) profiles and finishes to meet various requirements for span, insulation, waterproofing, imposed load, and thermal efficiency.

Technical Specifications

Parameter	Details
Thickness	0.8-1.2mm; max 1.5mm
Length	0mm-11800mm
Width	600mm-1025mm (model dependent)
Thickness Tolerance	±0.04mm
Width Tolerance	±5mm
Zinc Coating	60-275g/m²
Certification	ISO9001
Packing	Seaworthy packing

Structural Advantages

Pre-processed slots between corrugations for engineering utilities
Reduces dead load of structure, saving foundation costs
Enhances lateral stability of supporting steel beams during construction
Optimizes mechanical properties of both steel and concrete
Eliminates need for formwork and its associated labor
Provides even ceiling surface for concrete buildings
Serves as safe work platform during construction
Cost-effective solution with quick installation

Applications

Ideal for power plants, car showrooms, steel structure plants, airports, railway stations, stadiums, theaters, supermarkets, logistics centers, exhibition halls, and various commercial/industrial buildings.

Product Images
