Product Details
Place of Origin: China
Brand Name: FAMOUS
Certification: ISO, KS,JIS,ACRS
Model Number: 15.2mm / 12.7mm
Payment & Shipping Terms
Minimum Order Quantity: 18 Ton
Price: USD 700 (FYI)
Packaging Details: waterproof cloth
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10000Ton/ Month
Material: |
82B |
Coating: |
PE Coated |
MOQ: |
18 Ton |
Lead Time: |
10 Days |
Capacity: |
10000 Ton/ Month |
Color: |
Black/ Blue |
Package: |
Packed In Roll |
Weight: |
1.5~3.5 Ton / Roll |
Material: |
82B |
Coating: |
PE Coated |
MOQ: |
18 Ton |
Lead Time: |
10 Days |
Capacity: |
10000 Ton/ Month |
Color: |
Black/ Blue |
Package: |
Packed In Roll |
Weight: |
1.5~3.5 Ton / Roll |

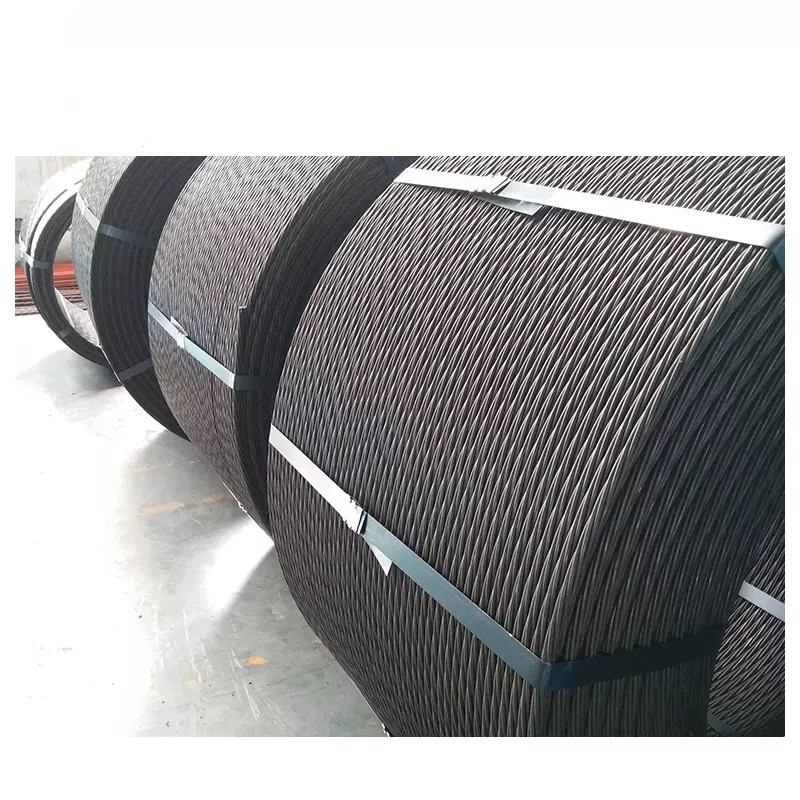

Post Tensionin Prestressed Concrete Bridge Construction Material 2.5% Ralaxation Prestressed Concrete Steel Strand 15.7
Unbonded means that after the prestressed steel strand is prestressed, there is no adhesion between the prestressed steel strand and its reserved tunnel in the concrete member, and it can slide, and the prestress is transmitted by the anchors at both ends. The most commonly used steel strands are galvanized steel strands and prestressed steel strands. Commonly used prestressed steel strands are in the range of 9.53mm-17.8mm with a small number of thicker diameter strands. The steel wire in each prestressed steel strand is generally 7 pieces, and there are also 2, 3 and 19 steel wires. The steel wire can have a metal or non-metal anti-corrosion layer. Applying anti-corrosive grease or paraffin to HDPE is called unbonded steel strand.
Specification of the Product
| Dia(mm) | Tensile Strength (Rm/MPa) |
Max strength (Fm/kN) |
StipulatedNominal Non proportional extensionrate (Fp0.2/kN) |
| 12.7 | ≥1860 | ≥185.1 | ≥166 |
| 15.2 | ≥1860 | ≥262.5 | ≥235 |
| Dia(mm) | Cross section size(mm2) |
Approximate weight(g/m) |
Tolerance(mm) |
| 12.7 | 98.7 | 775 | ‘+0.4~-0.2 |
| 15.2 | 150 | 1178 | ‘+0.4~-0.2 |
| BS5896 Standard | |||
| Type | Standard 7 wire | Super 7 wire | |
| mm Nominal Diameter | 9.3/11/12.5/15.2 | 9.6/11.3/12.9/15.7 | |
| mm Diameter Tolerance | 0.3/-0.15/0.4/-0.2 | 0.3/-0.15/0.4/-0.2 | |
| mm² Nominal Area | 52/71/93/139 | 55/75/100/150 | |
| Kg/1000m Nominal Weight | 408/557/730/1090 | 432/590/785/1180 | |
| KN Strength Grade | 1770/1770/1770/1670 | 1860/1860/1860/1770 | |
| KN Minbreaking Strength | 92/125/164/232 | 102/139/186/265 | |
| KN Min.yield Strength | 85% Min.breaking strength | ||
| L0>500mm Min. Elongation | 3.50% | ||
| L0>500mm Min. Elongation |
Initial Load of Min Nominal Breaking Strength | 60%/70%/80% | |
| 1000h ValueNo More Than | 1.0%/2.5%/4.5% | ||
Details of High Rise Building 1x7 15.2mm PE Coated Steel Strand with Grease Unbonded PC Strand
1.high tensile strength and elongation;low relaxation value;small stress losing;excellent durable anti-fatigue performance.
2.Grade: 250K / 270K / 290K, Tensile Strength: 1770Mpa / 1860Mpa / 1960Mpa, the 1000h Relaxation is 2.0% max and the elongation is 4.0% min.
3.Categories: plain,galvanized,PE coated,epoxy resin coated, spiral ribs, indented.
Application of the High Rise Building 1x7 15.2mm PE Coated Steel Strand with Grease Unbonded PC Strand
1. PC strand is used as cable for special bridges and maintenance of bridges.
2. PC strand is used in concrete pillars and supports for the construction of buildings, domes for nuclear power plants and reinforcement of LNG concrete tanks.
3. PC strand is used as floor and roof reinforcement for sports stadiums.
4. PC strand can be extensively used in construction materials for PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
PC steel strand is the simplified term describing Prestressed Concrete Steel Strand Wire. With the advantages of high tensile strength and good corrosion resistance at elevated temperature, PC strand wire is used in heavy loading concrete constructions.
It is made with galvanized steel wire or carbon steel wire through drawing, twisting or stranding and stabilizing. The stranded wire structures allow high tension and less distortion in uses.
