Fixed Glass Draft Curtain For Shopping Malls And Factories

Draft curtain is fixed or mobile smoke containment devices made of non-combustible materials that droop not less than 500 mm from the ceiling. Movable smoke retaining vertical wall refers to the smoke retaining vertical wall which sags automatically due to the effect of temperature, smoke or other control equipment during fire. Mainly used for high-rise or super high-rise large shopping malls, office buildings and warehouses and other occasions, can effectively prevent smoke from flowing horizontally under the roof of the building, to improve the smoke exhaust effect in the smoke prevention zone, to protect the safety of people's life and property play a certain role.

Technical parameters of fixed smoke retaining vertical wall:

Scope of use:
1, in the building atrium and the surrounding places are not using fire partition wall, fire glass partition wall, fire shutter and other products in the gold building, the atrium and the surrounding places should be
Use smoke bulkhead Settings.
2. Smoke exhaust facilities are used in the building, and open stairs and self-use escalators are set to cross the opening part of the floor. Smoke retaining wall and other measures should be set up;
3, the building is set up in the smoke exhaust system places or parts need to use smoke retaining vertical wall, structural beams and partitions divided into smoke prevention partition, smoke prevention partition can not cross the fire partition:
4, civil air defense engineering is set up in the smoke exhaust Settings go to the room at the same time the net height is not more than 6m, should use smoke hanging wall, partition wall or from the ceiling outstanding beam not less than 0.5m as smoke partition;

5, garage, repair garage and other warehouses set up smoke exhaust facilities, smoke control area of the building area should not exceed 2000 square meters, not across the fire partition. The separation of smoke prevention zones here is the same as in article 4.

Where does industrial plant need to install smoke retaining wall?

1. If the substances used or produced in factory production are as follows :(1) liquid with flash point greater than or equal to 60℃; (2) combustible solid, the floor room with an area of more than 300 square meters in the factory building, and the production place with more staff and combustible materials; Smoke retaining walls must be installed in corridors of class C plants exceeding 40 meters.
2, specially used for storing non-burning materials for processing under normal temperature, the use or processing of difficult to burn material production warehouse
If the building area of any floor is more than 5000 square meters, smoke retaining vertical walls shall be set;
3. Warehouse with an area of 1000 square meters:
4. Inner walkway with a height of 32 meters in high-rise workshop and a length of 20 meters in warehouse; evacuation walkway with a length of 40 meters in other buildings;

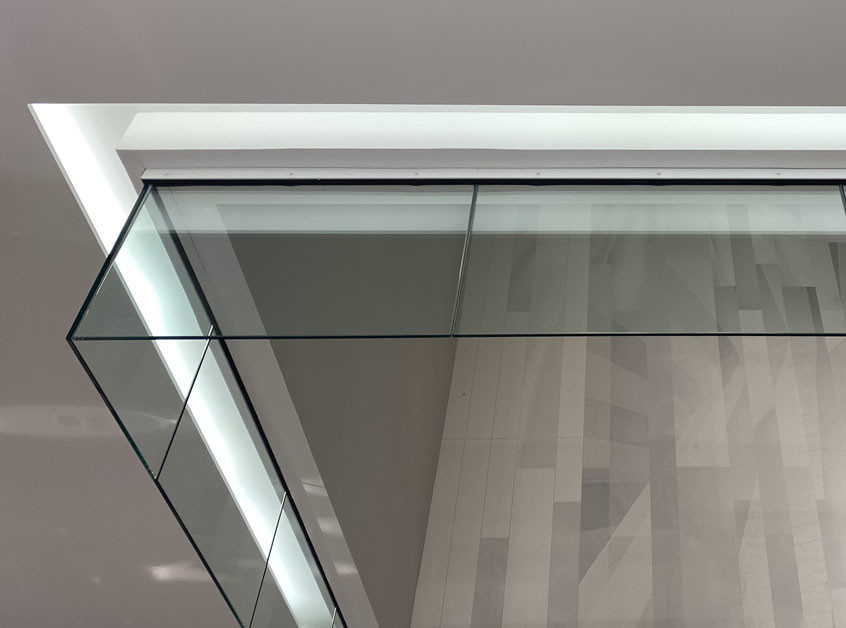

A suspended clear glass smoke baffle system, Smokedam incorporates a proprietary mounting channel.

Various performance levels are available including NCC compliant toughened / laminated glazing and fire resistant glazing systems which exceed the Building Code Requirements.

The system is ideal for smoke channelling when used in combination with natural ventilation or mechanical smoke exhaust systems.

Smokedam can be supplied and installed in an unlimited length and can be installed into new and existing buildings.
