Torsional Properties Structural Steel Box Girder For Bridge Construction

China Torsional Properties Structural Steel Box Girder For Bridge Construction supplier
Torsional Properties Structural Steel Box Girder For Bridge Construction supplier Torsional Properties Structural Steel Box Girder For Bridge Construction supplier Torsional Properties Structural Steel Box Girder For Bridge Construction supplier

Large Image :  Torsional Properties Structural Steel Box Girder For Bridge Construction

Product Details:

Place of Origin: China
Brand Name: FASEC
Certification: CE, ISO, SGS
Model Number: HZFS

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons
Price: USD1500-2600/ton
Packaging Details: seaworthy packing in container or bulk vessel
Delivery Time: As per client's needs like 2-3 months
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100000ton per year
Contact Now
Detailed Product Description
Grade: Q345B,Q355B Width: 500mm-2200mm
Length: 5000-11800mm Type: Heavy Steel
Application: Bridge Construction Surface Treatment: Galvanized Or Painted
Place Of Origin: Hangzhou
High Light:

Q345B steel box girder

,

Torsional steel box girder

,

Q345B steel box bridge

Torsional Properties Structural Steel Fabrications Box Girder for Bridge Construction

The section shape of the box beam is the same as that of the usual box section, so it is called a box beam. It is generally composed of a cover plate, a web plate, a bottom plate and a partition plate. Mainly used for large span or load-bearing structures.



When the span of the bridge is large, the box girder is the best structural form, and its closed thin-walled section has high torsional rigidity, which is especially beneficial for curved bridges and bridges with cantilever construction. The top and bottom plates have large areas, can effectively resist positive and negative bending moments and meet the needs of reinforcement, with good dynamic characteristics and small shrinkage deformation values.



The box-shaped section has good bending and torsional properties. The top and bottom plates of the box-shaped section are the main parts of the structure to provide bending resistance. The web of the box girder mainly bears the bending shear stress of the structure and the main tensile stress caused by the torsional shear stress.



Compared with the solid web beam of the same section, it has light weight, less consumables and good bending resistance.



Application:
Box girder is widely used in bridge engineering, and its shear lag effect is a problem that must be considered in design calculation. Affected by the shear lag effect, the stress distribution of the upper and lower flange plates of the box girder is very uneven along the plate width. Usually, the stress near the web is the largest, and its value is much larger than that calculated by the elementary beam.

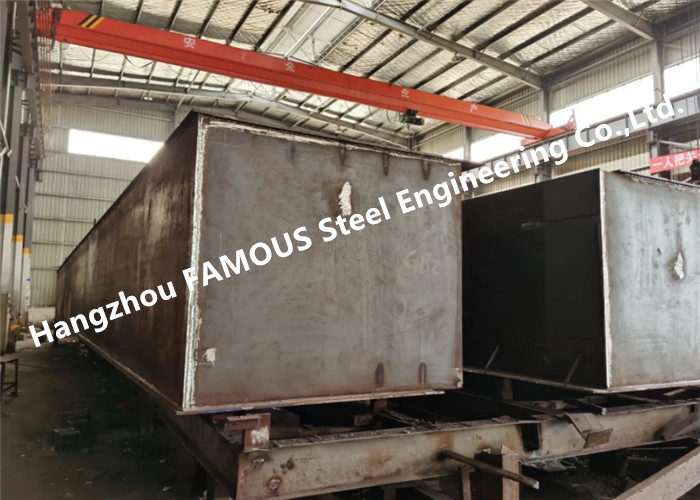

Torsional Properties Structural Steel Box Girder For Bridge Construction 0
