Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support

China Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support supplier
Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support supplier Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support supplier Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support supplier

Large Image :  Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support

Product Details:

Place of Origin: China
Brand Name: FASEC
Certification: ISO9001-2008
Model Number: Steel Overhead Sign Structures

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: USD800-USD2,000 /piece
Packaging Details: In bundles, all seaworthy packaging and transportation
Delivery Time: 30 working days
Payment Terms: Western Union, , MoneyGram, L/C, T/T
Supply Ability: 10000 pieces per month
Contact Now
Detailed Product Description
Material: Steel Grade: Q235,Q345,S235,S355 ,SS400 Etc
Type: Overhead Sign Structures Product Name: Overhead Truss Cantilever, Monotube Cantilever, Sign Support
Height: 3-15 Meters Surface Treatment: Rough,Hot Dip Galvanizing Antirust/powder Painting
MOQ: 10 Pieces Turnaround Time: 30 Working Days
High Light:

Structural Steel Cantilever Overhead Sign

,

Highway Support Cantilever Overhead Sign

,

Truss Cantilever Type Overhead Sign





Structural Steel Cantilever Overhead Sign Truss

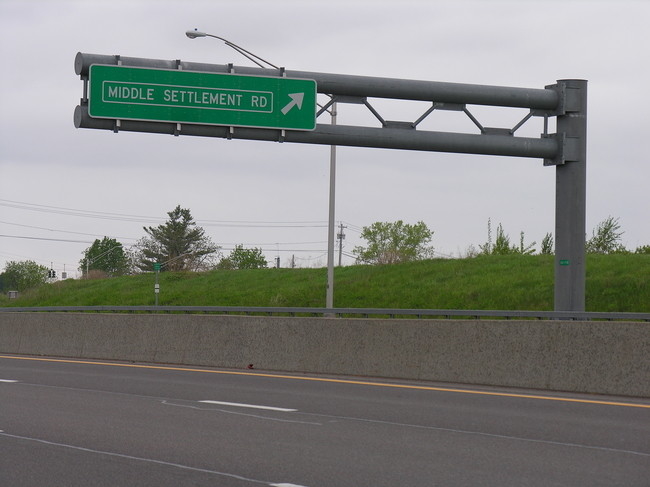

Cantilever-type Highway Overhead Sign Support Structures







Overhead sign structures can be seen on the highways all the time. They are designed to support many types of traffic, road, and geographical signs. The most common use for them are directions for drivers on highways, indicating where to turn and go.



Sign structures help control traffic flow on highways and ensure drivers arrive at their destination in a quick, safe manner. The entire range of structural steel supports from us are manufactured using quality steel through bending, forming, welding, and hot dip galvanization if necessary and powder coating processes, highly durable and able to support various sign structures of shapes and sizes.



Cantilevers are among the variety of overhead sign structures we supply. Overhead Cantilevers usually are placed near the side of the road, indicating where you can exit. A Double Arm Sign Cantilever can display twice the information needed for drivers to know where to go and utilize a good amount of space for arrows and images.



Types:
•Monotube cantilever
•Truss cantilever



Uses:
•Sign support (static panel or DMS)
•Light signals



Characteristics: Typically spans one to two lanes of traffic. This type is utilized when there is only room for one upright column or when signs are not needed across all lanes.





Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 0



Specifications

Material: Steel, Q235,Q345,S235,S355,SS400
Yield strength of Material:

Minimum yield strength>=235n/mm2 for Q235, S235 and SS400

Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50

Pole height: 3-15m
Length of one part with joint
Wall thickness: 6-8mm
Pole's Shape Can be made: Polygonal, Round,Octagonal, Taper round, Round conical, Taper Square, Square.
Galvanization: Hot dip galvanization with thickness of 80-100µm average in accordance with European standards.
Painting color: (RAL)Color card or Refer to client’s requirement
Surface treatment : Rough pole, Hot dip Galvanizing antirust, Hot dip galvanizing with powder coating
Temperature range -35 °C~+65 °C
Wind Speed: Aganist wind pressure of 120Km/h to 180Km/h, or according to client design.
Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted: The length buried underground as per customer’s requirement.
Quality Control According to ISO9001-2008 requirements.
Certificates ISO9001-2008, A153 Galvanize Standards EN 1461



Why Us?
• CAD design engineering service - senior engineer team ready to create tailored solutions to fit both your project and budget.
• Good quality and Proven performance - serviced lots of Urban Municipal Projects.
• Quick shipment - factory ownership, good control of production schedule.

• Moderate price - factory direct, saving costs for you from designing to shipment.



Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 1



Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 2



Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 3



Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 4



Certificates

Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 5



Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 6



About Us - Hangzhou FAMOUS Steel Engineering Co.,Ltd

As a business unit of KNSN Group, FAMOUS supplies a wide variety of Steel Structural Supports for Signs, Luminaires, and Traffic Signals worldwide, in assortment of steel grades and production standards depending on client's needs. Products include but not limited to lighting poles, utility poles, traffic signal poles, overhead span structures, cantilever structures, lattice towers, A-frames, bridges and allied accessories. Factory-direct prices for quality products, professional service and on-time delivery, satisfaction and value ensured.



Structural Steel Cantilever Overhead Sign Truss Cantilever Type Highway Support 7



If you have interest, please contact us for a quote. We are happy to talk about our capabilities and solutions for your project.
