Highlight:
Powder Painting Traffic Signal Poles
, Double Post Sign Support System
, Q345 Metal Post For Street Sign
Material: |
Steel |
Grade: |
Q235,Q345,S235,S355 ,SS400 Etc |
Type: |
Steel Structural Supports For Traffic Signals |
Product Name: |
Traffic Signal Poles, Road Sign Structure |
Height: |
3-15 Meters |
Surface Treatment: |
Rough,Hot Dip Galvanizing Antirust/powder Painting |
MOQ: |
10 Pieces |
Turnaround Time: |
30 Working Days |

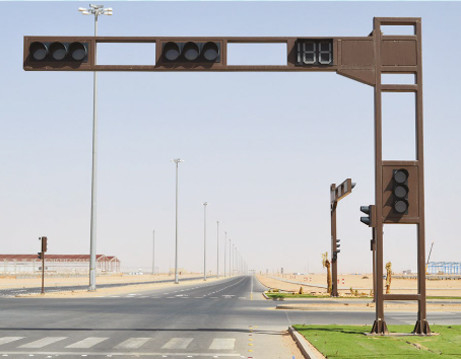

Steel Double Post Sign Support System Traffic Signal Poles
Double-post sign support system steel traffic signal poles
We are a professional manufacturer of custom Steel Structural Supports for Signs, Luminaires, and Traffic Signals. Products include but not limited to traffic signal poles, traffic sign gantry, monitoring poles, octagonal poles, lighting poles, lattice towers, A-frames, bridges, highway sign structures and allied accessories. Industries served include architecture, transportation and utility.
Traffic signal poles are specially designed for roadway and intersection requirements, usually, to meet local road authority or council specifications. The Traffic Signal range from us are designed for standard and specialised signal and lighting applications, fabricated using various process like bending, forming, welding, hot dip galvanization and powder coating.
Traffic Signal poles can be either base plate or in-ground mounted, depending on the relevant authority’s requirements.The poles are hot dip galvanized and can be powder coated or painted in the colour of your choice, available in tapered round, tapered octagonal, and circular hollow section.
The advantages of steel poles FYI - Steel is usually the least expensive and highest strength material for a pole of a given diameter and wall thickness. Steel is an excellent choice for projects located in high wind areas and areas that need to withstand large and/or heavy loads.
Specifications for traffic signal poles
| Material: |
steel, Q235,Q345,S235,S355,SS400 |
| Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400
Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50
|
| Pole height: |
3-15m |
| Length of one part |
with joint |
| Wall thickness: |
6-8mm |
| Pole's Shape Can be made: |
Polygonal, Round,Octagonal, Taper round, Round conical, Taper Square, Square. |
| Galvanization: |
Hot dip galvanization with thickness of 80-100µm average in accordance with European standards. |
| Painting color: |
(RAL)Color card or Refer to client’s requirement |
| Surface treatment : |
Rough pole, Hot dip Galvanizing antirust, Hot dip galvanizing with powder coating |
| Temperature range |
-35 °C~+65 °C |
| Wind Speed: |
Aganist wind pressure of 120Km/h to 180Km/h, or according to client design. |
| Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: |
The length buried underground as per customer’s requirement. |
| Quality Control |
According to ISO9001-2008 requirements. |
| Certificates |
ISO9001-2008, A153 Galvanize Standards EN 1461 |
Certificates
About Us - Hangzhou FAMOUS Steel Engineering Co.,Ltd
As a business unit of KNSN Group, FAMOUS supply a wide variety of premium steel structures worldwide, in assortment of steel grades and production standards. Services include CAD design engineering, roll forming, tooling, fabricating and finishing. A wide range of shapes, sizes and specifications are achievable at very moderate prices and all orders committed to be shipped within the stipulated time frame.
If you have interest, please contact us for a quote. We are happy to talk about our capabilities and solutions for your project.
