Product Details:
Payment & Shipping Terms:
|
Warranty:: | 1 Year | After-sale Service:: | Online Technical Support |
---|---|---|---|
Model Number:: | Light Steel Villa | Design Style:: | American Style |
Color:: | Ask Customer Service For Details | ||
High Light: | earthquake proof light steel structure building,american style light steel structure building,earthquake proof light steel structure villa |
Specification
Type | With or without steel chassis | Type one: without steel chassis, build on concrete strip foundation Type two: with steel chassis, the building will be put on concrete blocks |
Story | One storey or two storey or three storey are available | |
Frame system | Steel column | Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint |
Steel roof truss | C100*40*15*2.0, welding and galvanized | |
Roof and wall purlin | C100*40*15*2.0, galvanized | |
Cross bracing | Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint | |
Chemical bolt | M16, chemical bolt | |
Ordinary bolt | 4.8S, galvanized | |
Steel chassis or 1st floor system | Main beam | HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint |
Secondary beam | C100*40*15*2.0 galvanized | |
Floor structure board | 18/20mm plywood and fiber cement board | |
Flooring | PVC floor leather and ceramic tiles are available | |
Wall and Roof system | Wall panel | Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available |
Roof panel | Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available |
|
Ceiling system | Dry room | 600*600*6mm gypsum board,with framework |
Wet room | 600*600*5mm calcium silicate board, with framework | |
Door and window system | Door | Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available |
Window | PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available | |
Electric and Plumbing system | Electric units | Electric wire, conduit, socket, switch, light, distribution box |
Sanitary units | Shower, closestool, basin, water pipe |

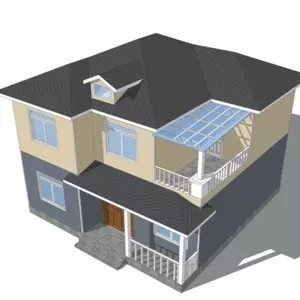

Light Steel Villa Advantages
1. The steel art room is completely prefabricated in the overall specifications, roofing, floor, roof and water circuit system,
making the site installation convenient and fast, shortening the time period from building the house to use.
2. The steel structure system makes the house have excellent ability to resist wind speed of 120km/h; the lightweight structure
makes the house show good integrity when it encounters an earthquake disaster stronger than 9th grade.
3. The house can be transported as a whole or compressed and packaged.
4. The amount of on-site production is small and can be used after being transported to the site.
5, steel art room; creative space, through the space design, you can create a concept of housing and nature, perfect integration,
to create a unique creative use of space.
