Product Details:
Payment & Shipping Terms:
|
Material: | Steel | Grade: | SY295, SY390, Q345P, S355GP Etc |
---|---|---|---|
Type: | Tubular Combined Walls | Product Name: | Combi-Wall |
Technology: | Hot Rolled, Cold Formed | Surface Treatment: | Black Painting, 3pe Coating, Galvanized |
Standard: | ASTM,AISI, EN,JIS | Application: | Cofferdams, Seawalls, Revetment, Quaywall |
Tolerance: | +/-5% | Turnaround Time: | 30 Working Days |
MOQ: | 25 Tons | Payment Terms: | T/T |
High Light: | 3pe Coating Combi Wall System,Q345P Combi Wall System,Pipe Combination Wall Series |
A Combi-wall is a combination of large-diameter steel pipe piles and sheet piles installed to form a retaining wall structure. Pipe piles provide resistance to overturning forces and the steel sheet piles serve as in-fill between the pipes. Combi-walls can be left in place permanently or elements can be extracted and re-used when no longer needed.
The pipe pile portion of a Combi-wall is typically installed as a bored pile which may or may not be backfilled with concrete and reinforcing steel, depending on the application. Sheet piles are installed in the spaces between the pipes with a vibratory hammer and are aligned with pipes using welded interlocking points.
*Combi-walls provide a cost-effective shoring alternative to the secant wall while providing significantly more load bearing capacity than a sheet pile wall.
*Combi-walls are effective in temporary applications as the steel elements can be easily removed and re-used once the structure is no longer needed.
We are capable to offer the complete solution for combi wall systems.From high section modulus to relatively low mass ratio, endless combinations allow for the most economical solution to be adopted - U or Z type sheet piles can be used as infill, with the interlocks welded to the tubular piles ready for installation, giving freedom of choice for customers depending on preference and cost.
The tubular piles can have thicknesses up to 120mm, diameters up to 4000mm and lengths up to 120 meters, manufactured by SSAW or LSW method in accordance to relevant standards such as ASTM A252, with interlocking hot or cold rolled clutches welded at request. Steel grade:from grade B to X65 X70,S235 to S420 S460 etc.
Tubular Combined Wall System
Sectional Properties Examples

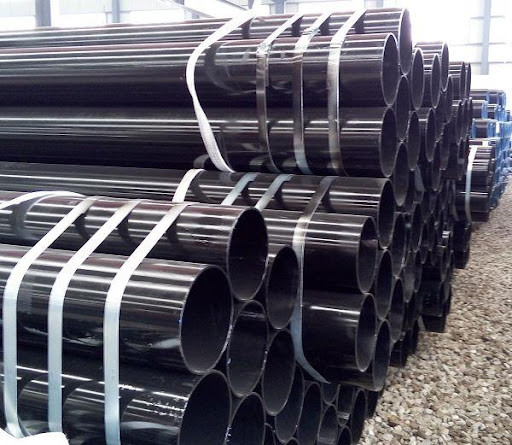

Detailed Product Images
Applications
Combi walls are used when sheet piling is no longer sufficient or economical. The combi walls can be installed both on land and on water. As an effective and economical solution for a high section modulus requirement, its applications include (but not limited to) building foundation, bridges, wharves and piers.
Certificates
About Us - Hangzhou Famous Steel Engineering Co.,Ltd
Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.
If you have interest, please contact us for a quote.
