Z Type Steel Sheet Piles
, EN Standard Steel Sheet Piles
, S275 Structural Steel Fabrications
Factory Low Price Z type Sheet Piles Europe standard
Premium Quality Fast Delivery All Types Steel Sheet Piles
Z type sheet piles are produced in the shape of Z letter, which is normally driven in crimped or welded doubles. It has a continuous, symmetrical interlock on both sides of the neutral axis. Both aspects have a positive influence on the sections, as they are located at a considerable distance from the neutral axis. This ensures and increase in strength for a wide variety of applications. Z sheet piles are more widely used than U profiled in port construction or deep foundation because Z profile can have a bigger modulus and can be used as intermediary piles for tubular and HZ combined wall. Z piles are the most common type of sheet piles and can be used widely in the construction sector.
Features and advantages
* Extremely competitive section modulus/mass relation,
* Lighter than U-piles when comparing sections with equivalent properties,
* Increased inertia and thus reduced deflection allowing the choice of high yield strength steels for the most economical solution,
* Large width resulting in high installation performance and enhanced watertightness.
Famous as a leading manufacturer and supplier of structural steel products in China, is able to offer the global market a comprehensive range of premium quality Z Profile Steel Sheet Piles in singles, loose or crimped pairs for both temporary and permanent applications.
Steel Grade Options:S275,S355,S390,S430,SY295,SY390, etc.
Standard Availability : EN10248, ASTM A-328,JIS A 5523 , JIS A 5528.
Delivery Options:
* Single or Pairs
* Pairs either loose, welded or crimped
* Lifting Hole
* By container (11.8m or less) or Break Bulk
* Corrosion Protection Coatings
Sectional Properties Examples
| Width |
Height |
Thickness-flange |
Thickness-wall |
Mass per Pile |
Mass Wall |
Modulus of section |
Moment of Inertia |
| mm |
mm |
mm |
mm |
kg/m |
kg/m2 |
cm3/m |
cm4/m |
| 770 |
344 |
8.5 |
8.5 |
72.6 |
94 |
1245 |
21430 |
| 770 |
344 |
9.0 |
9.0 |
76.1 |
99 |
1300 |
22360 |
| 770 |
345 |
9.5 |
95 |
79.5 |
103 |
1355 |
23300 |
| 770 |
345 |
10.0 |
10.0 |
82.9 |
108 |
1405 |
24240 |
| 700 |
314 |
85 |
85 |
67.7 |
96 7 |
1205 |
18880 |
| 700 |
315 |
9.5 |
9.5 |
74.0 |
105.7 |
1305 |
20540 |
| 700 |
316 |
10.0 |
10 0 |
77.2 |
110 2 |
1355 |
21370 |
| 700 |
316 |
10.5 |
10.5 |
80.3 |
114.7 |
1405 |
22190 |
| 630 |
380 |
9.5 |
9.5 |
74.4 |
118 |
1800 |
34200 |
| 630 |
381 |
10.0 |
10.0 |
77.8 |
123 |
1870 |
35540 |
| 700 |
419 |
85 |
8.5 |
73 1 |
104 |
1730 |
36230 |
| 700 |
420 |
90 |
90 |
76.5 |
109 |
1800 |
37800 |
| 700 |
420 |
9 5 |
95 |
80 0 |
114 |
1870 |
39380 |
| 700 |
421 |
10.0 |
10 0 |
83.5 |
119 |
1945 |
40960 |
| 800 |
449 |
8.5 |
8.5 |
80.7 |
100.9 |
1840 |
41320 |
| 800 |
450 |
9.5 |
9.5 |
88.6 |
110.7 |
2000 |
45050 |
| 800 |
451 |
10.5 |
10.5 |
96.4 |
120,5 |
2165 |
48790 |

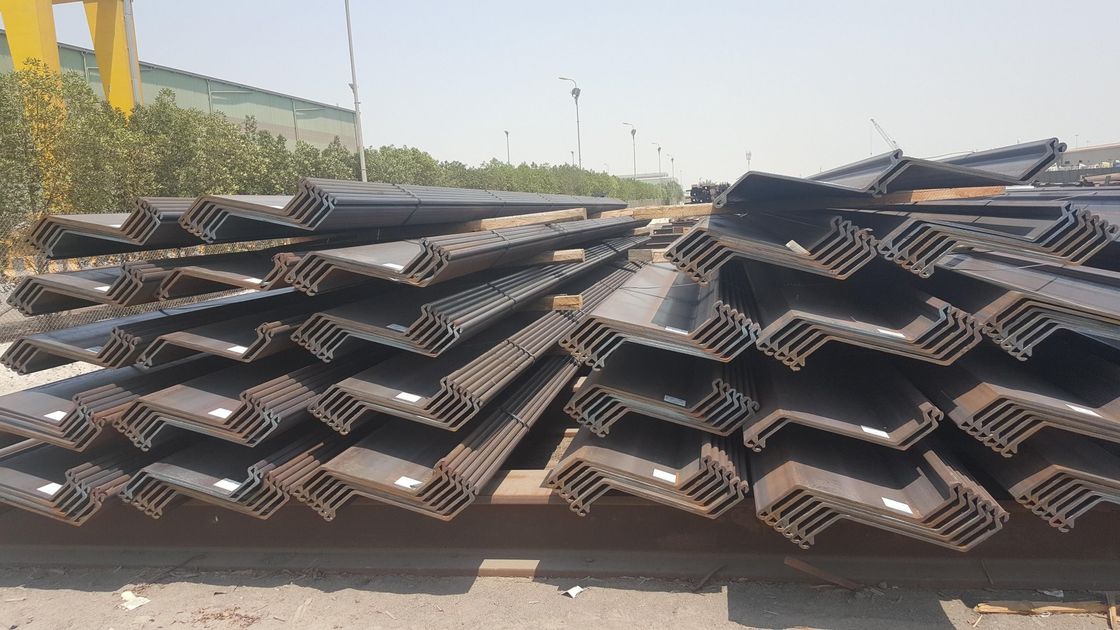

Detailed Product Images
Applications
Quay Wall; Revetment; Man Made Island; River Revetment; Temporary Retaining Wall; Bridge Pier Protection; Cofferdam; Retaining Wall, Seawall; Ground Foundation; Excavation and etc.
Certificates
About Us - Hangzhou Famous Steel Engineering Co.,Ltd
Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.
If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.
