Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Grade: | SY295, SY390, Q345P, S355GP Etc |
|---|---|---|---|
| Type: | Steel Pipes | Product Name: | Welded Steel Pipe |
| Standard: | ASTM,AISI, EN,JIS | Application: | Cofferdams, Seawalls, Revetment, Quaywall |
| Tolerance: | +/-5% | Turnaround Time: | 30 Working Days |
| MOQ: | 25 Tons | Payment Terms: | T/T |
| High Light: | ASTM A252 Standard Steel Pipes,Port Constructions Piling Pipes |
||

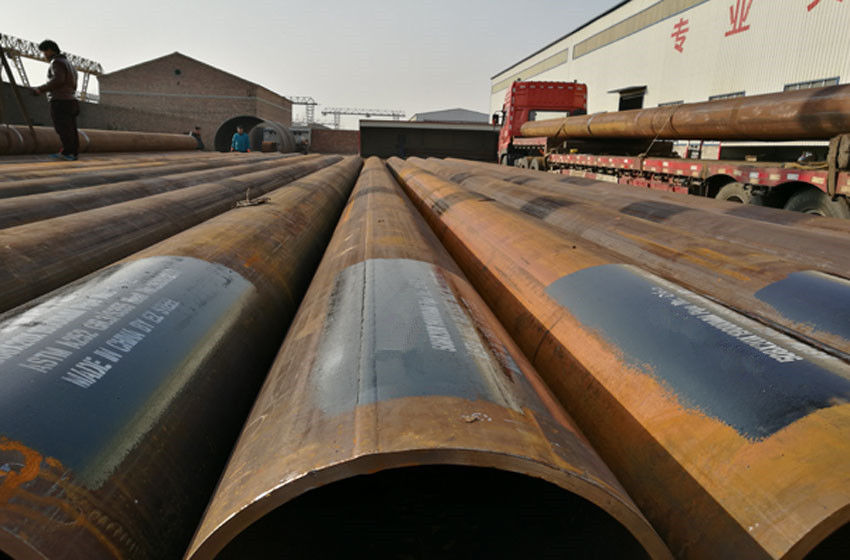

ASTM A252 Standard Steel Pipes Piling Pipes for Bridge/Port constructions
Pipe Piling
Deep foundations are required when the shallow soils are not strong enough to support the loads from the structure. Pipe piles are commonly used in deep foundations and transfer the loads from building to stronger soil layers found deep underground. The loads are resisted through skin friction and point bearing. Pipe can be driven either open-ended or closed-ended, with points or plates. If driven with plates, the pipes can then be filled with concrete to add strength to the pile. Usually the money spent on plates, rebar, and concrete would be better spent on a larger, thicker pile. Pipe piles range in size from several inches to several feet in diameter and can be easily spliced to create piles hundreds of feet in length.
Steel pipe piles are widely used in ports/harbors (piers, seawalls, and breakwaters), urban civil engineering (earth-retaining walls and cofferdams), bridges (foundations for steel pipe sheet pile foundations), and other applications, along with widening their applications due to enlargement of the structures sizes, growth of water depth for the structures and increase in construction work at sites where the bearing strata are deep under thick soft ground.
Famous offer a range of different profiles to suit your demands and these steel pipe piles can be supplied in various diameters, wall thicknesses and lengths in accordance with ASTM standards.
Features and advantages
1. Large vertical-bearing capacity
By driving the pipe piles into firm bearing layers, they exhibit a large vertical-bearing capacity.
2. High bending strength
Steel pipe piles with high stiffness and high bending strength enable resistance to considerable horizontal force during earthquakes.
3. Excellent environmental performance
Piles with small section areas realize less earth removal and low vibration and noise.
4. Custom fit for each structure
Various pile lengths, diameters, and thicknesses contribute to economical design.
5. Easy production of longer piles and jointing piles
Longer products can be manufactured, and, as joining piles by welding is also easy, it is possible to apply these to deep water and deep underground structures.
6. Easy jointing with superstructures
Jointing with upper concrete structures is easy, using reinforcing steel bars at the top of piles.
7. Easy handling
Steel that’s light and tough contributes to easy handling and transport.
Detailed Product Images
Applications
Certificates
About Us - Hangzhou Famous Steel Engineering Co.,Ltd
Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.
If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.
