JIS5528 Standard Omega Steel Sheet Piles Cold Formed

Certification
China FAMOUS Steel Engineering Company certification
China FAMOUS Steel Engineering Company certification
Good team members always offer budget in time and answer questions with patience, great job!

—— Donald Mcwayne

I am feeling fully respected when taking with Grace and she always gave the best advice. The first batch of the bridge panels got are great too. thanks all.

—— Joseph Alexander

I'm Online Chat Now

JIS5528 Standard Omega Steel Sheet Piles Cold Formed

China JIS5528 Standard Omega Steel Sheet Piles Cold Formed supplier
JIS5528 Standard Omega Steel Sheet Piles Cold Formed supplier JIS5528 Standard Omega Steel Sheet Piles Cold Formed supplier

Large Image :  JIS5528 Standard Omega Steel Sheet Piles Cold Formed

Product Details:

Place of Origin: China
Brand Name: FASEC
Certification: ISO 9001; ISO 14001; CE;
Model Number: Omega-type sheet piles

Payment & Shipping Terms:

Minimum Order Quantity: 25 Tons
Price: USD500-1000 /Ton
Packaging Details: In bundles, all seaworthy packaging and transportation
Delivery Time: 30 to 45 days
Payment Terms: Western Union, , MoneyGram, L/C, T/T
Supply Ability: 100000 tons per week
Contact Now
Detailed Product Description
Material: Steel Grade: SY295, SY390, Q345P, S355GP Etc
Type: Steel Sheet Piles Product Name: Omega-type Sheet Piles
Standard: ASTM,AISI, EN,JIS Application: Cofferdams, Seawalls, Revetment, Quaywall
Tolerance: +/-3% Turnaround Time: 30 Working Days
MOQ: 25 Tons Payment Terms: T/T
High Light:

Omega Steel Sheet Piles

,

JIS5528 Steel Sheet Piles







  JIS5528 standard Cold-formed omega sheet piles



Omega type sheet piles are mostly used in Asia. All pan type sheet piles are light gauge sheet piling, with smaller properties than other dimensions and specifications. The hat type sheet piles are intended for short and light loaded walls, like drainage ditches, retaining walls for private home and gold courses. The omega type sheet pile has a hat shape cross sections with relatively thin but larger sectional areas. This allows efficient implementation of pile driving work, which can secure higher structural reliability and more economically.

JIS5528 Standard Omega Steel Sheet Piles Cold Formed 0

Features and advantages

* Have higher stiffness compared to U-type sheet piles, as the interlocks are at the outermost part of the sheet piles, as far away from the neutral axis as possible,

* Suitable for locations where space is restricted, as sheet piles are installed along the same line,
* Can be produced in wider sections than the U-type sheet piles,
* Light weight and cost effective,
* Sizes available: from 4-16 mm thick, 600-1,600 mm wide, and section modulus from 260-4,600 cm3/m,
* Can be produced as per customer’s own design.



Steel Grade Availability: S275,S355,S390,S430,SY295,SY390, etc.

Standard Availability: EN10248, ASTM A-328,JIS A 5523 , JIS A 5528.

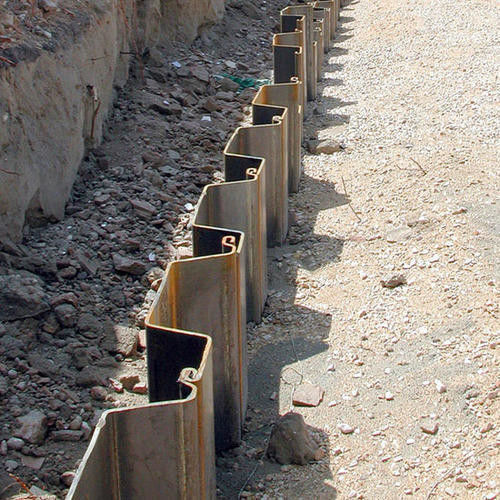

Detailed Product Images



JIS5528 Standard Omega Steel Sheet Piles Cold Formed 1



Applications



JIS5528 Standard Omega Steel Sheet Piles Cold Formed 2



Certificates



JIS5528 Standard Omega Steel Sheet Piles Cold Formed 3



JIS5528 Standard Omega Steel Sheet Piles Cold Formed 4



About Us - Hangzhou Famous Steel Engineering Co.,Ltd



Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.



JIS5528 Standard Omega Steel Sheet Piles Cold Formed 5



If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.
