Product Details:
Payment & Shipping Terms:
|
Material: | Steel | Specification: | Q235b Or Q345b |
---|---|---|---|
Surface Treatment: | Painted Treatment | Color: | Customized |
Craft: | Welding | Finishing: | Cladding, Color Sheets.etc |
Application: | Warehouse, Workshop, Garage, Factory And So On | ||
High Light: | prefabricated galvanized light steel structure house,Q345b light steel structure house,galvanized light steel prefab house |

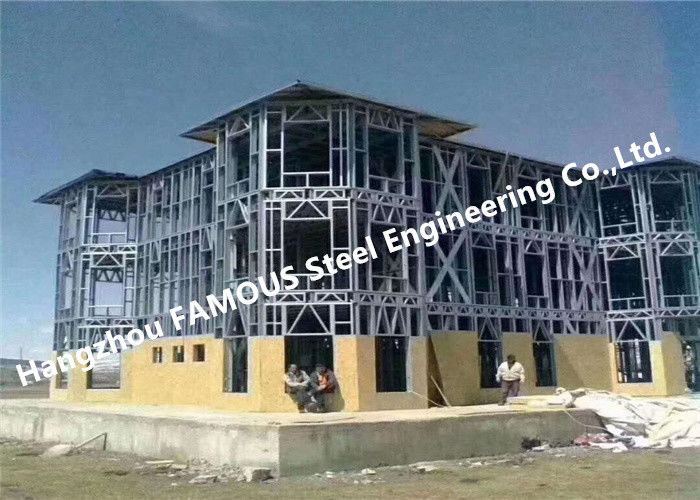

Light steel villa, also known as light steel structure house, its main material is light steel keel synthesized from hot-dip galvanized aluminum steel strip through cold rolling technology.
Specification
Name | Light Steel Prefab Villa |
Square Meter options | 50m² - 500m², as you requirement |
Interior Plans | 0-3 Bathrooms, 1-6 Bedrooms, 1-2 Kitchens, 0-2 Sitting Rooms, or as you requirement |
Structure | Light Steel Structure |
Framing | G550 AZ150g:beam,rack, removable pillar, Steel cold-formed pillar |
Roof Tile | Stone chip coated steel roof tiles,or as you requirement |
Exterior Wall Decoration | Color Coated Embossed Decoration wall panels (PU Insulation) ect,or as you requirement |
Interior Wall Decoration | Aluminium alloy decoration wall panels,or as you requirement |
Floor | Plywood & Laminate Sub floor(Including Skirting Line),or as you requirement |
Door | Fireproof Security Door, or as you requirement |
Window | Aluminum / PVC sliding window with single glass,or as you requirement |
Others | Steel Eaves ,Gutter, Fixing Clip, Water Funnel,Connection, Elbow, Square Pipe, Fixing Pipe Clip |
Certificate | ISO,CE,AUS,NZ,ETC |
Features:
1. Corrosion resistance:
The corrosion resistance of "55% aluminum-zinc steel coil" comes from the barrier layer protection function of aluminum and the sacrificial protection function of zinc. When zinc is used for sacrificial protection on the cut edges, scratches, and scratches of the coating, aluminum forms an insoluble oxide layer and exerts a barrier protection function. The aluminum-zinc alloy steel coil has been subjected to outdoor exposure tests for more than 20 years in various atmospheric environments, and it has been confirmed that the cutting edge protection function of 55% aluminum-zinc steel plate is better than that of galvanized steel plate and 5% aluminum-zinc steel plate. good.
2. Heat resistance:
The heat resistance of 55% aluminum-zinc alloy steel plate is better than that of galvanized steel plate, which is similar to the high temperature oxidation resistance of aluminum-plated steel plate. The aluminum-zinc alloy steel plate can be used in a high temperature environment up to 315 degrees.
3. Reflectivity:
The 55% aluminum-zinc alloy steel plate has a high reflectivity, making it a heat-resistant barrier; the thermal reflectivity of the aluminum-zinc steel plate is almost twice that of the galvanized steel plate, so it acts as a roof and inlay without painting. The board can also achieve energy-saving effects.
4. Paintability:
Due to the excellent adhesion between the zinc layer of the galvanized steel sheet and the paint, it can be painted without pretreatment and weathering when used as a sign board for general purposes; while the galvanized steel sheet needs weathering and pretreatment .
Advantages:
1. Stable steel structure: The mainly structure of prefab house is light steel structure and sandwich panel. They form a stable structure so it can resist 9-10 grade hurricane and 7-8 grade earthquake.
2. Quick Installation: One team skilled workers can finish installing 100m2 prefab villa in several days.
3. Flexible layout: The partition wall, window, ceiling, elevating flooring, eaves and color steel door are optional for clients.
4. Long service life: The components of house can be used repeatedly, so its service life can reach up to more than 25 years without any building garbage.
5. Used widely: Light steel villa can be built widely in the scenic site and around the seashore for holiday house or other usages.
6. Excellent performance: Fire-proof, water-proof, sound and heat insulation.
Applications:
The complete house can high space utilization and have unique appearance. This kind of products are particularly suited to scenic areas, leisure homes, such as mountain villas, lakeside-view villas, restaurants, Chess House and so on.
Light steel villa system structure
The light steel wall structure system is composed of light steel multi-ribbed beams and columns and the maintenance structure. It has excellent physical performance indicators, short construction period, and good insulation effect. It is a new type of green, energy-saving and environmentally friendly building structure system.
1. Basic system
The light weight of the light steel structure house is light, only about one-fifth of the brick-concrete structure house, and about one-eighth of the reinforced concrete structure house, so it can greatly reduce the cost of foundation construction. The light steel structure house foundation generally adopts the strip foundation. can.
1. The light steel structure is light in weight, which can greatly reduce the cost of basic engineering;
2. The basic moisture-proof design can effectively prevent the intrusion of moisture and harmful gases;
3. Reasonable anchoring method to ensure the reliable connection between the foundation and the main body.
2. Wall system
The external wall system is generally between 120-200mm. Due to the light and thin wall, light steel structure houses increase the actual use area by about 10%-15% compared with traditional houses, and increase the indoor use area by more than 90% compared with traditional houses. Can be flexibly separated. The pipelines can be arranged in the holes reserved for the walls, floors and roof components, which has good concealment and is more beautiful.
1. The wall is filled with glass fiber cotton, which has good heat preservation, heat insulation and sound insulation performance;
2. Breathing paper is waterproof and breathable, which can effectively adjust the indoor air humidity, make living more comfortable, and effectively prevent the growth of mold inside the wall;
3. The pipeline is buried in the wall and does not occupy indoor space.
3. Floor system
The floor is made of high-strength hot-dip galvanized C-shaped and U-shaped light steel components. The floor beams are arranged in accordance with the standard modulus and evenly spaced and densely ribbed. The floor beams are covered with structural plates that have been strictly moisture-proof and anti-corrosion to form a strong earthquake resistance. Floor system.
1. The combined structure of structural slab and floor steel beam is strong and stable;
2. Various water and electricity pipelines are hidden in the floor structure and do not occupy the height of the building;
3. Filling the interlayer with glass fiber cotton, the effect of heat preservation, heat insulation, sound absorption and sound insulation is remarkable.
4. Roofing system
The roof truss is assembled from various light steel components. Generally, there are triangular roof trusses and T-shaped roof trusses, which can easily and flexibly realize various complicated roof shapes. Generally, the roof adopts colorful asphalt shingles, which has good waterproof performance, and highlights the beauty and quality.
1. The composite roof has the functions of rainproof, weatherproof, heat insulation, etc., which can realize a variety of shapes;
2. The ventilation cycle design keeps the air fresh at all times.
5. Structural components
All structural components are made of high-strength galvanized steel to ensure the service life of the house. All structural components are cold-formed by the factory's precision machinery assembly line, and the dimensional accuracy is in millimeters, which is unmatched by other structures.
