Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall

Certification
China FAMOUS Steel Engineering Company certification
China FAMOUS Steel Engineering Company certification
Good team members always offer budget in time and answer questions with patience, great job!

—— Donald Mcwayne

I am feeling fully respected when taking with Grace and she always gave the best advice. The first batch of the bridge panels got are great too. thanks all.

—— Joseph Alexander

I'm Online Chat Now

Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall

China Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall supplier
Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall supplier Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall supplier Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall supplier Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall supplier

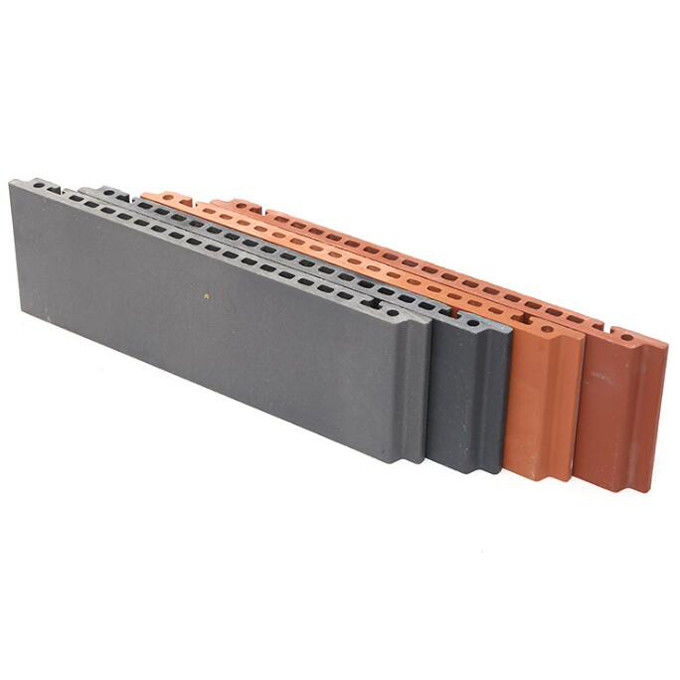

Large Image :  Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Fasecbuildings
Certification: ISO9001:2008
Model Number: terracotta curtain wall

Payment & Shipping Terms:

Minimum Order Quantity: 1500sqm
Price: USD100-950 per sqm
Packaging Details: plywood case
Delivery Time: Based on client's needs
Payment Terms: L/C,T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300,000 sqm per Year
Contact Now
Detailed Product Description
Thickness: 18/20mm Width: 300/450mm
Length: 300mm/600mm/900mm/1200mm/1500mm Application: Building Facade
High Light:

curtain wall terracotta facade panel

,

18mm terracotta facade panel

,

terracotta facade cladding panel

Terracotta Panel Curtain Wall Features

1.Never Fade

The terracotta panel made up from high quality natural pure argil, via vacuum high pressure extrusion molding, burn out from high temperature. With low consumption and no radiation, light pollution, never fade and can effectively resist ultraviolet radiation, durable, 100% of the repeatable recycling. It’s environmental protection material choice.

2.Waterproof & Insulation Sound Noise

The terracotta panel cavity design greatly reduces the materials self weight, reduce building façade structure system load, meanwhile, after high temperature firing, can effectively reduce the heat transfer coefficient, make ceramic plate with greater intensity, makes its enhanced against the bad weather, the waterproof is admirable.

3. Anti Fire &Freeze

Advanced technology and equipment, precise cutting, strict calibrated to ensure the product quality and size stability. The terracotta panel has good security anti fire characteristics, anti acid and alkali corrosion resistant, anti scratch and abrasion. Even face supernormal low or high temperatures, it could keep stable.

4.Rain Self-cleaning

Clay materials content metal very low, do not produce electrostatic, not easy to absorb dust, dirt not easy deposition, via wind and rain could self cleaning.

5.Simple Natural

The terracotta panel colors is rich, covers the modern architecture mainstream color design requirements. Natural texture and external clay color collect architectures rich artistic style.



Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall 0



Technical Specification:

Item No. Terracotta wall panel
Thickness 18mm
Water Absorption Rate 3~10%
Dry Weight ≤32kg/m2
Freezing Resistance No Crack or Flake
after 100 times test
in -30°C~30°C
Breakage Strength 4.01KN
Rupture Modulus average 16.5 Mpa
Acid and Alkali Resistance UA grade
Seismic Behavior ≥10
Wind Pressure Test 9kPa without damage
Sound Proof Reduce Noise more than 9db



Color:



Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall 1

packing:

Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall 2

Commercial Building 18mm Terracotta Facade Panel Fireproof Waterproof Cladding Curtain Wall 3
