Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall

China Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall supplier
Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall supplier Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall supplier Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall supplier Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall supplier

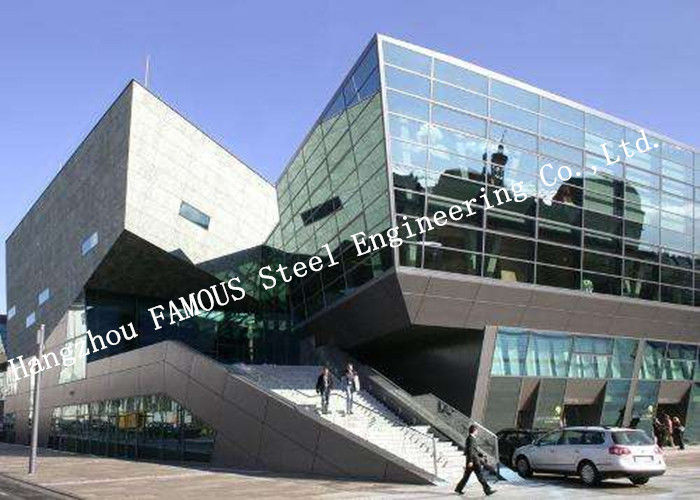

Large Image :  Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Fasecbuildings
Certification: ISO9001:2008
Model Number: Stick

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: USD100-550 per sqm
Packaging Details: Standard waterproof paper and steel framed or wooden box
Delivery Time: Based on client's needs like one month
Payment Terms: L/C,T/T, D/A, D/P, Western Union
Supply Ability: 600,000 sqm per Year
Contact Now
Detailed Product Description
Specification: 4+12a+4 Material: Steel And Glass
Frame: Aluminum Frame Color: Blue Or Grey
Installation: Very Easy Size: According To Client's Need
Application: Building Exterior Type: Unitized Curtain Wall

Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall

The glass curtain wall refers to the building peripheral protection structure or decorative structure which can be displaced by the supporting structure system relative to the main structure and does not share the main structure. The wall has a single layer and double glazing. The glass curtain wall is a beautiful and novel method of building wall decoration, which is a prominent feature of the era of modernist high-rise buildings.



The glass façade of modern high-rise buildings uses an insulating glass that is combined with mirror glass and ordinary glass, and filled with dry air or inert gas. The insulating glass has two layers and three layers. The two layers of insulating glass are sealed by two layers of glass to form a sandwich space. The three layers of glass are composed of three layers of glass and two interlayer spaces. Insulating glass has the advantages of sound insulation, heat insulation, anti-frosting, moisture proof and high wind pressure resistance. According to measurements, when the outdoor temperature is -10 ° C, the temperature in front of the single-layer glass window is -2 ° C, and the indoor temperature using the three - layer insulating glass is 13 ° C. In the hot summer, double-layer insulating glass can block 90% of solar radiant heat. The sun can still pass through the glass curtain wall, but most of the sun does not feel hot. The room with hollow glass curtain wall can be warm in winter and cool in summer, which greatly improves the living environment.



Advantages:

1.Decorating project technical consultancy service: aluminium curtain wall project, aluminium window and door project, steel construction project, interior design project.
2.Purchasing decorating materials consultancy service: metallic material, window and door, curtain wall, hardware accessories, glass, ceramic, sanitary, furniture and etc.
3.Purchasing and exporting agent: receiving and inspecting goods for customer, being an agent for export and etc.


Specification:

Product Name

PV Glass Curtain Wall

Product Type Curtain Wall
Feature Modeling, Decoration, Heat Insulation, Security
Color Customized
Regular Thickness Profile & glass thickness depend on local climate and wind speed
Size Customized size
Surface treatment

PVDF, Powder coating

(Akzo Nobel or other Famous brand) Or Customized

Certification ISO9001-2000, CHINA SQUARE&ROUND COMMITTEE DNV
Hardware

Roto hardware, GU hardware, Siegenia Hardware

from Germany or Kinlong or Customized

Applicable place Exterior building/Hotel/Shopping mall
Notice

Pls send detail drawings, elevation draw, 3Dpictures , building location,

and wind speed for any calculation.

If any special inquiry, pls kindly mention for quotation.



Features:

1. Full-glass curtain wall is fully transparent and all-in-view, and pursues exchange and integration between the inner and outer spaces. People could clearly see the whole structural system of the glass, so as to turn the structural system from supporting role to performance visibility and to demonstrate a sense of architectural aesthetics, type, hierarchy and space impression.

2. The system is light in weight, and features simple selection of material, processing in factories, fast construction and convenient maintenance. Also, it’s easy to clean.

3. For the effect of enriching architectural elevation, this system is unparalleled, and is a perfect embodiment of the modern science and technology in the building decoration.



Cost of facade-mounted PV modules can be partially offset by the cost of the glazing infill they replace. In many places, there are subsidies or tax credits to further help defray first cost. PV power generation can be significant. In one modeling scenario, where facade-integrated arrays were assumed to cover south-facing spandrel areas of a suburban office building, PV power output equal to 25% of the building's lighting needs was anticipated. Most demonstration projects are of a smaller scale. In the US, we enjoy relatively low electrical power rates, so justification of BIPV must be based on criteria other than payback time. As society starts to recognize the long-term costs of emissions from conventional fossil-fueled power sources, this equation will change.



Only one unit-to-unit splice (usually a silicone sheet or patch) needs to be field-sealed, and only one anchor per mullion needs to be attached to the face or top of the floor slab. Interlocking unitized glass curtainwall frame members are weatheripped to seal to one another, both horizontally and vertically. This accommodates thermal expansion and contraction, inter-story differential movement, concrete creep, column foreshortening, and/or seismic movement. Most unitized curtainwall systems are installed in a sequential manner around each floor level, moving from the bottom to the top of the building.



Application:

HOW TO CHOOSE FROM PV GLASS CURTAIN WALL SYSTEMS

Selection Criteria

Stick Curtainwall

PV Glass Curtain wall

Project Size

Small

Large

Wall Configuration

Complex

(Many changes in plane, e.g. soffits, corners, etc.)

Repetitive

(Large expanses of flat wall)

Joint Pattern

Random

Uniform horizontal sill line

Glazing

Field

Factory

Inter-story Movements

Very limited

Inter-locking frames accommodate movements

Quality Control

Subject to site variables

(Both environment and equipment)

Controlled factory conditions

Modification

Can be cut-to-fit in the field

Pre-engineered

Sealing

Subject to site variables

Minimal field sealing

Field Labor Cost

High

(Many parts to track and assemble)

Low

Field Labor Duration

Slow

Fast

(Often setting 75 sqft or more per unit)

Access and Safety

Exterior access required

Set from the interior

(Exterior optional)







Aluminium Frame 4+12a+4 Tempered Glass Wall System Panel Unitized Curtain Wall



All our pre-glazed façade curtain wall systems are fabricated, assembled and glazed within the controlled environment of our manufacturing facility. This will bring greater quality control and the ability to pre-construct our frame modules before the building’s structure is erected; it’s also very helpful to accelerate the close-in of the building, since our installation team can work on sections of the building as they become available; while minimizing delays due to weather conditions.



Nowadays the unitized curtain wall system have become the preferred method for enclosing buildings, as more building owners, architects and contractors conclude the benefits of this type of construction. Unitized systems allow buildings to be enclosed quickly, which can help to speed up the construction process leading to earlier occupation. The fabrication process for unitized systems is more consistent than for stick-built curtain walls, as unitized wall systems are constructed in almost an assembly line fashion, indoors, and under controlled environmental conditions.
