Product Details
Place of Origin: Zhejiang, China
Brand Name: FAMOUS
Certification: ISO9001:2008, SGS, etc.
Model Number: OWN
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD1300~USD2500 per ton
Packaging Details: Containerized packing or bulk ship
Delivery Time: Based on client's need
Payment Terms: L/C,T/T
Supply Ability: 600.000 tons per year
Frame: |
Steel Column |
Material: |
Q345B Or Q235B Or Customized |
Size: |
According To Cliend's Need |
Installation: |
Easy |
Color: |
As Client's Required |
Craft: |
Welded |
Application: |
Aircraft Hangar Or Steel Structure Warehouse |
Surface: |
Sandwich Panel Or Galvanized Sheet |
Surface Treatment: |
Painted Or Galvanized |
Frame: |
Steel Column |
Material: |
Q345B Or Q235B Or Customized |
Size: |
According To Cliend's Need |
Installation: |
Easy |
Color: |
As Client's Required |
Craft: |
Welded |
Application: |
Aircraft Hangar Or Steel Structure Warehouse |
Surface: |
Sandwich Panel Or Galvanized Sheet |
Surface Treatment: |
Painted Or Galvanized |

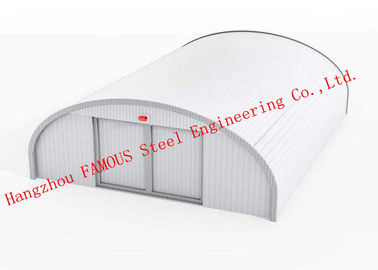

Steel structure aircraft hangar has features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.
The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall.
The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage
Specifications:
|
Main frame steel
|
Steel Welded H Section or hot rolled H section
|
|
Purlin
|
C or Z Section Channel for roof and wall
|
|
Cladding system
|
Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool for wall and roof
|
|
Tie Rod
|
Circular Steel Tube
|
|
Brace
|
Round Bar
|
|
Column & Transverse
|
Angle Steel or H Section Steel or Steel Pipe
|
|
Knee Brace
|
Angle Steel
|
|
Roof Gutter
|
Color Steel Sheet
|
|
Rainspout
|
PVC Pipe
|
|
Door
|
Sliding Sandwich Panel Door or Metal Door
|
|
Windows
|
PVC/Plastic Steel/Aluminum Alloy Window
|
|
Connecting
|
High Strength Bolts
|
|
Main steel material
|
Q345, Q235, Q345B, Q235B,Q355 etc
|
|
Packing
|
Decided by you , loaded into 1X 40ft GP,1X20 ft GP,1X40 ft HQ
|
|
Drawing
|
We can make the design and quotation according to your require or you
|
|
Crane
|
Decided by you
|
Quality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)
Advantage:
1.Cost saving and transportation convenient, custom design available
2.The main beam and column are made of quality steel.
3.Steel structure makes the house resist heavy wind of 220km/h and 8-grade earthquake.
4.Easy assembly and disassembly several times without damage.
5.Good environmental protection effect. Steel structure housing construction greatly reduces sand, stone and dosage of the ash. Most of the used materials are recyclable or degradable, little rubbish produced.
6.Continuous welding on both sides of each pieces;
7.Mark every beam on the bottom plate for being saw after being galvanized;
8.Send pictures to the buyer by mail during products being processed and loaded in container;
