FAMOUS Core advantages:

l  China Top6 steel structure group company

l  15 years experience in domestic and oversea metal construction field

l  Professional design team and fabrication team with mature quality control system

l  Timely quotation and free consulting service

Please kindly send below information for a preliminary quotation:

u  1. Building outer dimension: Length, width, height etc.

u  2. Local climate: Wind speed, snow load, seismic magnitude, rainfall etc.

u  3. General layout drawings(if you have)

1. Available Design Standard:

With exporting so many steel buildings overseas, FAMOUS have rich experience in foreign steel construction projects design and familiar with most commonly used design standards like ASTM, JIS, BS, GB.

Especially for GB and ASTM design standards, there are several engineers who are focus on the study and practice of metal construction design by these standards.

Considering the difference between Chinese steel material and American Standard material or IPE(European Standard) material, FAMOUShave a mature system for steel beam replacement now. In other words, even you provide us the drawings designed by any standard, FAMOUScan use Chinese steel components instead of any special standard size perfectly after calculation.

2. Design Software:

The engineering team of our group company is professional in many steel building design software, like AutoCAD, Tekla 3D, Xsteel, PKPM, etc.

3. Our Engineering Team:

As Top6 steel building group company in China, FAMOUS have the specific engineering department, there are around 45 engineers in this team,  and more than 60%member have steel structure design and detailing experience with not less than 10 years.

4. Complete Design Service:

FAMOUS has the ability to provide the complete design for clients’ metal construction project, including preliminary architectural design, structure design(with stress calculation), detailing drawings and erection guide drawings.

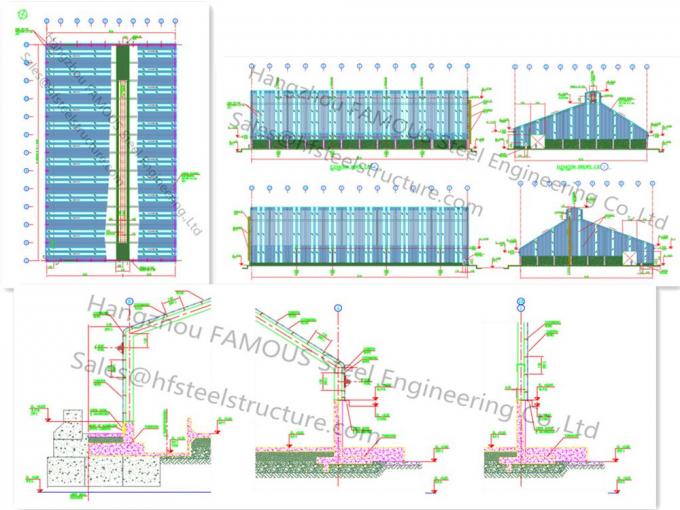

Stage 1. Architectural design:

Stage 2. Structure design(3D model with memory calculation):

 Stage 3. Detailing drawings for fabrication:

Stage 4. Erection guide drawings:

5. Actual Project View(This project totally designed and fabricated by our group company)

6. Our Group Company View
