Product Details:
Payment & Shipping Terms:
|
Material: | Steel | Grade: | SY295, SY390, Q345P, S355GP Etc |
---|---|---|---|
Type: | Steel Sheet Piles | Product Name: | Z-type Sheet Piles |
Standard: | ASTM,AISI, EN,JIS | Application: | Cofferdams, Seawalls, Revetment, Quaywall |
Tolerance: | +/-3% | Turnaround Time: | 30 Working Days |
MOQ: | 25 Tons | Payment Terms: | T/T |
High Light: | Cofferdams Cold Rolled Steel Sheet Pile,Custom Dimensions Steel Sheet Pile,Z Shaped Piles |

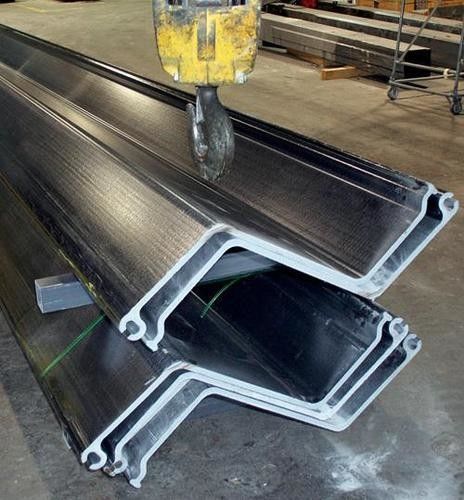

Z shaped Piles Custom Dimensions Cold Rolled Steel Sheet Pile for Cofferdams
Z shaped Piles were produced in Europe as early as 1911. These Piles followed the wave-shaped Larssen concept, with the advantage that the interlocks were formed on the outer elements of the Pile, unlike the Larssen interlocks which are located on a neutral axis.
Famous offer a comprehensive range of Z Profile Steel Sheet Piles in singles, loose or crimped pairs.
Steel Grade:S275,S355,S390,S430,SY295,SY390, etc.
Standard: EN10248, ASTM A-328,JIS A 5523 , JIS A 5528.
Features and advantages
*Extremely competitive section modulus/mass relation,
*Lighter than U-piles when comparing sections with equivalent properties,
*Increased inertia and thus reduced deflection allowing the choice of high yield strength steels for the most economical solution,
*Large width resulting in high installation performance and enhanced watertightness.
Sectional Properties Examples
Width | Height | Thickness-flange | Thickness-wall | Mass per Pile | Mass Wall | Modulus of section | Moment of Inertia |
mm | mm | mm | mm | kg/m | kg/m2 | cm3/m | cm4/m |
770 | 344 | 8.5 | 8.5 | 72.6 | 94 | 1245 | 21430 |
770 | 344 | 9.0 | 9.0 | 76.1 | 99 | 1300 | 22360 |
770 | 345 | 9.5 | 95 | 79.5 | 103 | 1355 | 23300 |
770 | 345 | 10.0 | 10.0 | 82.9 | 108 | 1405 | 24240 |
700 | 314 | 85 | 85 | 67.7 | 96 7 | 1205 | 18880 |
700 | 315 | 9.5 | 9.5 | 74.0 | 105.7 | 1305 | 20540 |
700 | 316 | 10.0 | 10 0 | 77.2 | 110 2 | 1355 | 21370 |
700 | 316 | 10.5 | 10.5 | 80.3 | 114.7 | 1405 | 22190 |
630 | 380 | 9.5 | 9.5 | 74.4 | 118 | 1800 | 34200 |
630 | 381 | 10.0 | 10.0 | 77.8 | 123 | 1870 | 35540 |
700 | 419 | 85 | 8.5 | 73 1 | 104 | 1730 | 36230 |
700 | 420 | 90 | 90 | 76.5 | 109 | 1800 | 37800 |
700 | 420 | 9 5 | 95 | 80 0 | 114 | 1870 | 39380 |
700 | 421 | 10.0 | 10 0 | 83.5 | 119 | 1945 | 40960 |
800 | 449 | 8.5 | 8.5 | 80.7 | 100.9 | 1840 | 41320 |
800 | 450 | 9.5 | 9.5 | 88.6 | 110.7 | 2000 | 45050 |
800 | 451 | 10.5 | 10.5 | 96.4 | 120,5 | 2165 | 48790 |
Detailed Product Images
Applications
Certificates
About Us - Hangzhou Famous Steel Engineering Co.,Ltd
Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.
If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.
Email: Eva@hfsteelstructure.com
Phone: +86-571-87688170; +86-13989831561
