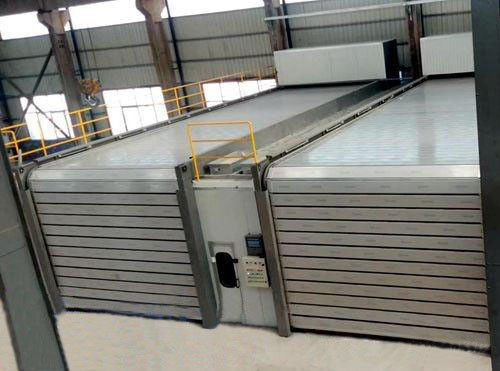

Modern Industrial ISO3834 High Speed Door Horizontal And Lifting Swirled Backwards

Horizontal And Lifting High Speed Door
Dimension:Customized
Motor: SWF hard fast-rolling door special servo motor (2.5KW) and servo control cabinet.
Door Plate: The color coating aluminum alloy sheet’s thickness is 0.8mm, the door panel’s total thickness is 44mm, and the effective width is 225 mm.
It has built-in strengthen rib.
Control System: SWF control system. Its maximum speed is up to 2-3m/s. (Adjustable)
Protection Measures: Infrared protection(Not Required)
Track: It is made by 2mm galvanized sheet by molding machine.
Emergency lock handle
Radar (Not Required)
Packaging: Iron frame& wrapped cardboard&winding film

Material and quality

1. The skeleton is steel structure, usually Q235 is used. The interior can be filled with thermal insulation material, which has good heat insulation and sound insulation;

2. For exterior decoration, color steel plate, aluminum plate, stainless steel plate, aluminum-plastic plate, and polyurethane profiled plate can be selected according to user needs; you can choose the lighting style;

3. Imported fiber braided lifting straps;

4. Electrical components use high-quality and reliable brand devices.

Special

1. The upper folding door is calculated according to the design, and it is synchronously lifted by the rollers of N lifting belts on the same axis;

2. Stable operation, low noise, sound and light prompts when opening and closing the door;

3. The door seal is realized in all directions, and the door is tight, heat-insulating and noise-reducing.

4. High safety system; safety limit system; infrared system (optional);

5, can realize the electric switch gate;

Technical Parameters:

1, Opening Speed: 6-9 m / min

2, the maximum size: width according to user requirements;

3. Working voltage: 380V / 50Hz

4. Installed with anti-falling parts

5. Wind pressure resistance: ≥700pa

6. Motor and reducer: domestic and imported professional motors can be selected

7. Electric control box protection class IP55

8. Sound insulation performance:> 40dB

9. Bottom loading limit mechanism (optional)

Application · Fan · Surrounding folding door is suitable for large-span doorways, especially for buildings with no space on the upper part and sides of the doorways. It can be widely used in small hangars, garages, hotels, and other large-span opening doors.
