Structural Insulated OSB EPS PU XPS PIR Sandwich Wall SIP Panels

Large Image : Structural Insulated OSB EPS PU XPS PIR Sandwich Wall SIP Panels

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	FASEC
Certification:	ISO9001:2008;CE
Model Number:	OWN

Payment & Shipping Terms:

Minimum Order Quantity:	1 20'GP
Price:	USD8~USD15 per Square Meter
Packaging Details:	Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel )
Delivery Time:	Based on client's needs
Payment Terms:	L/C,T/T
Supply Ability:	200,000 Square Meter per Month

Contact Now

Detailed Product Description

Features:	Fire,Water,Sound,Weather Proof ,etc.	Panel Thickness:	15mm-250mm
OSB Thick:	9mm,11mm,12mm,15mm,18mmor Other	Core Material:	EPS,XPS,PU,PUR,PIR,FIBER GLASS,CEMENT,etc
Applications:	Wall,Floor,Partitions,etc	Type:	Sandwich Panel
Certificate:	ISO 9001,CE,ASTM,EU,US,AU,NZS,etc
High Light:	Sandwich Wall SIP Panels , Structural SIP Panels , OSB Insulated Sandwich Panels

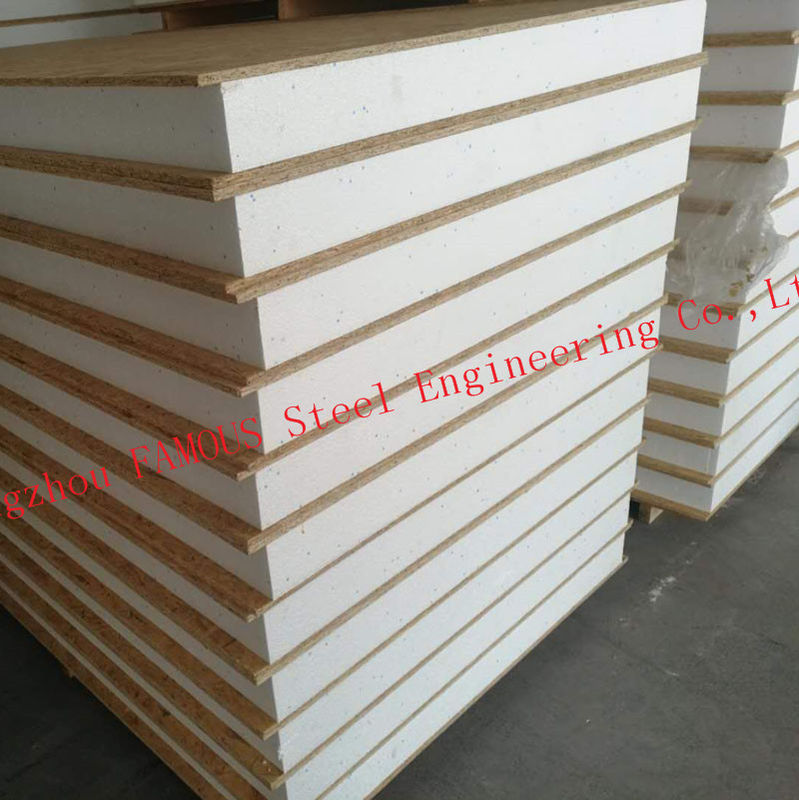

OSB EPS PU XPS PIR Sandwich wall SIP panels

OSB Sandwich Structural Insulated Wall Panel-SIPs are a composite building material, taking the form of a sandwich panel with two structural boards forming the external facings and an internal insulating foam core.

For OSB sip panel, the external facings are Oriented Strand Board (OSB) and the internal foam core can be EPS, XPS, PU.

Panel skins options include

Oriented strand board(OSB)
magnesium oxide boards(MGO sulfate board)
Fiber cement board (FCB)

Insulation core options include

Expanded Polystyrene(EPS)
Extruded Polystyrene(XPS)
Poly Urethane (PU)
Polyisocyanurate(PIR)
Polyurethane (PUR)

Application

OSB EPS PU Sandwich insulated wall panels is high performing insulated wall

Application ranges from ceiling to flooring and everything in between

Specifications

Base Material	OSB board+EPS+OSB board,OSB board +PU+OSB board
Standard Size(mm)	1220*2440mm
OSB Panel Thickness(mm)	9mm,11mm,12mm,15mm,18mmor other
Insulation Thickness(mm)	15mm-250mm EPS/PU
Fireproof	More Than 3 Hours
Application	external wall,Interior wall,proof panels,floors,partition,roof,prefab house
Features	100% no asbestos ,Light weight,easy to install,Fireproof,Moistureproof, Watweproof,Anticorrosive,Energy efficient,Environmentally Friendly
Structure	T&G	Cam lock	Sides closed

Technical Data	Units	EPS Sandwich panel	PU sandwich panel
Density	Kg/m3	18-20	40-45
OSB EPS PU Sandwich insulated wall panels could be customized according to customer’s requirement.
