Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component

China Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component supplier
Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component supplier Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component supplier Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component supplier Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component supplier

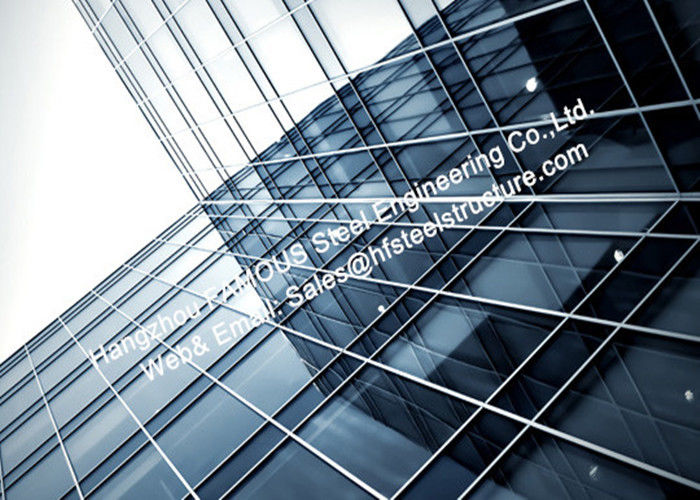

Large Image :  Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Fasecbuildings
Certification: ISO9001:2008
Model Number: Stick

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: USD100-550 per sqm
Packaging Details: Standard waterproof paper and steel framed or wooden box
Delivery Time: Based on client's needs like one month
Payment Terms: L/C,T/T, D/A, D/P, Western Union
Supply Ability: 600,000 sqm per Year
Contact Now
Detailed Product Description
Specification: Stick Glass Facade Material: Aluminum Frame
Coating: PVDF Color: Gray Or Customized
Installation: Very Easy Size: According To Client's Need
Application: Commercial Office Mall, Shopping Mall



Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall with A Single Glass Component

Curtain walls are becoming a popular application for photovoltaic glass in buildings. They allow for owners to generate power from areas of the building they had never thought of. Buildings become a real power plant, keeping their design appeal, aesthetics, efficiency and functionality.



Both amorphous Silicon and crystalline Silicon glass can be used for curtain applications, and choosing one or another will depend on your design preferences, energy needs, and daylight requirements.



PV Glass for curtain walls comes frameless, and it can be assembled into any commercial system. From a mechanical prospective, the glazing contractor will take care of its installation, and then the electrical contractor will interconnect the units.



Different visible light transmittance levels are also an option. A typical curtain wall system can combine semi-transparent PV Glass for the vision areas, together with fully dark glass for the spandrel. This strategy contributes to optimizing the energy yield from the elevation, while maintaining unobstructed views.



System technology:
Free choice of material (steel or wood), for profile widths from 50 mm
Same interface profile for mullions and transoms
Overlapping via vertical and horizontal single-Piece overarching sealing profiles with different drainage levels
Simple and efficient fixing of the aluminum profile by means of screws
Alternative simple fixing technique using steel studs for steel tubes with a wall thickness from 4 mm
Ideal for vertical and polygon façades, sloped glazing and spatial structures
Glazing from outside with visible or concealed screws


Specification:

Product Name

PV Glass Curtain Wall

Product Type Curtain Wall
Feature Modeling, Decoration, Heat Insulation, Security
Color Customized
Regular Thickness Profile & glass thickness depend on local climate and wind speed
Size Customized size
Surface treatment

PVDF, Powder coating

(Akzo Nobel or other Famous brand) Or Customized

Certification ISO9001-2000, CHINA SQUARE&ROUND COMMITTEE DNV
Hardware

Roto hardware, GU hardware, Siegenia Hardware

from Germany or Kinlong or Customized

Applicable place Exterior building/Hotel/Shopping mall
Notice

Pls send detail drawings, elevation draw, 3Dpictures , building location,

and wind speed for any calculation.

If any special inquiry, pls kindly mention for quotation.



Features:

1. Full-glass curtain wall is fully transparent and all-in-view, and pursues exchange and integration between the inner and outer spaces. People could clearly see the whole structural system of the glass, so as to turn the structural system from supporting role to performance visibility and to demonstrate a sense of architectural aesthetics, type, hierarchy and space impression.

2. The system is light in weight, and features simple selection of material, processing in factories, fast construction and convenient maintenance. Also, it’s easy to clean.

3. For the effect of enriching architectural elevation, this system is unparalleled, and is a perfect embodiment of the modern science and technology in the building decoration.



Cost of facade-mounted PV modules can be partially offset by the cost of the glazing infill they replace. In many places, there are subsidies or tax credits to further help defray first cost. PV power generation can be significant. In one modeling scenario, where facade-integrated arrays were assumed to cover south-facing spandrel areas of a suburban office building, PV power output equal to 25% of the building's lighting needs was anticipated. Most demonstration projects are of a smaller scale. In the US, we enjoy relatively low electrical power rates, so justification of BIPV must be based on criteria other than payback time. As society starts to recognize the long-term costs of emissions from conventional fossil-fueled power sources, this equation will change.



Only one unit-to-unit splice (usually a silicone sheet or patch) needs to be field-sealed, and only one anchor per mullion needs to be attached to the face or top of the floor slab. Interlocking unitized glass curtainwall frame members are weatheripped to seal to one another, both horizontally and vertically. This accommodates thermal expansion and contraction, inter-story differential movement, concrete creep, column foreshortening, and/or seismic movement. Most unitized curtainwall systems are installed in a sequential manner around each floor level, moving from the bottom to the top of the building.



Application:

HOW TO CHOOSE FROM PV GLASS CURTAIN WALL SYSTEMS

Selection Criteria

Stick Curtainwall

PV Glass Curtain wall

Project Size

Small

Large

Wall Configuration

Complex

(Many changes in plane, e.g. soffits, corners, etc.)

Repetitive

(Large expanses of flat wall)

Joint Pattern

Random

Uniform horizontal sill line

Glazing

Field

Factory

Inter-story Movements

Very limited

Inter-locking frames accommodate movements

Quality Control

Subject to site variables

(Both environment and equipment)

Controlled factory conditions

Modification

Can be cut-to-fit in the field

Pre-engineered

Sealing

Subject to site variables

Minimal field sealing

Field Labor Cost

High

(Many parts to track and assemble)

Low

Field Labor Duration

Slow

Fast

(Often setting 75 sqft or more per unit)

Access and Safety

Exterior access required

Set from the interior

(Exterior optional)







Photovoltaics Integrated Facades Solar Modules Glass Curtain Wall With Single Glass Component



All our pre-glazed façade curtain wall systems are fabricated, assembled and glazed within the controlled environment of our manufacturing facility. This will bring greater quality control and the ability to pre-construct our frame modules before the building’s structure is erected; it’s also very helpful to accelerate the close-in of the building, since our installation team can work on sections of the building as they become available; while minimizing delays due to weather conditions.



Nowadays the unitized curtain wall system have become the preferred method for enclosing buildings, as more building owners, architects and contractors conclude the benefits of this type of construction. Unitized systems allow buildings to be enclosed quickly, which can help to speed up the construction process leading to earlier occupation. The fabrication process for unitized systems is more consistent than for stick-built curtain walls, as unitized wall systems are constructed in almost an assembly line fashion, indoors, and under controlled environmental conditions.
