|Material:||Q345B Steel (ASTM A572 Equ.)||Surface Treatment:||Painted Or Hot Dip Galvanized|
|Width:||3.7m, 4.6m Or According To Client's Need||Installation:||Easy|
|Carry Capacity:||Resist Strong Wind And Earthquake, Bears Heavy Snow.etc||Model Number:||200-type|
|Grade:||Q345B||Q345B-Q460C:||AISI, ASTM, BS, DIN, GB, JIS|
|Color:||Grey Or Customized|
Description of Galvanized Steel Bailey Bridge

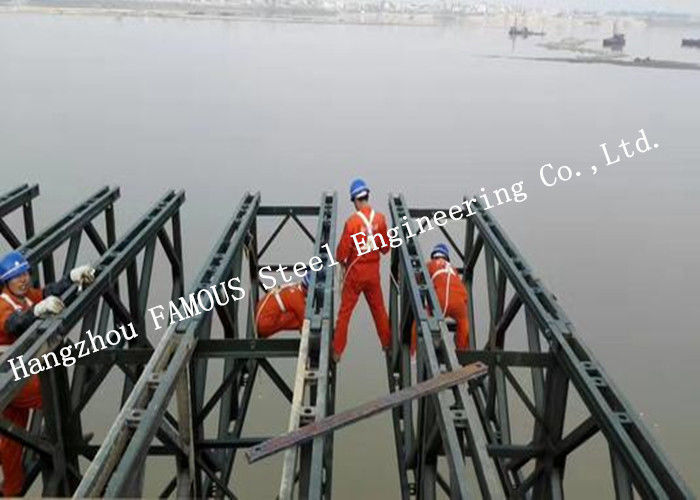

Steel Bailey Bridge (Panel Bridge) is a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. Using the bridge equipment, the suspension bridges of varied span can be erected. The bridge has the advantages of few components, light weight and low cost. Bailey bridge is similarly like compact 100,compact 200 International bridge. it is assembled by each 3m panel, and invented by Donald Bailey. Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc.
Specification of Steel Bailey Bridge
|Product Name||Specification of Compact 321-type Bailey bridge or Compact 100, 200 equivalent|
|Width||4.2m, 3.7m, 4m, 7.56m etc|
|Maximum span||81meter single span or 200m multi-span|
|Bridge deck||Steel composit panel|
|Steel grade||Q345B (equivalent to ASTM A572) or Q460B|
|Loading capacity||20ton, 40ton up to 120ton truck etc,|
|Corrosion||Original painted or Hot dip galvanized|
|Advantages||Price effective and technical full analysis and supports|
Our Steel Bailey Bridges are portable steel bridge have been widely used in various fields, its most important feature is to achieve a variety of
spans, bear carrying capacity, light and handy components, easy to dismantle and strong adaptability can be quickly completed with simple
tools and manpower.
Low cost The Bailey Bridge is a down-conductor bridge with a single-pin connection truss unit as the main beam of the bridge span structure. The utility model has the advantages of simple structure, strong adaptability, good interchangeability, convenient disassembly and assembly, quick erection speed and large load capacity;
It is mainly used for erecting single-span temporary bridges to ensure that various vehicles with a crawler load of 500 kN and a tire load of 300 kN (axial pressure of 130 kN) pass through rivers, broken bridges, valleys and other obstacles, and can be used for emergency repair. The damaged bridge can also be used to construct various fabricated steel structures such as construction towers, support frames and gantry frames. The maximum span is up to 69 meters, and the width of the roadway is 3.7 meters. The speed is allowed: 30 km/h for wheeled vehicles and 5 km/h for tracked vehicles; 30~40 for manual erection; It can be carried by general-purpose trucks, and each vehicle is loaded with 3~4 lengths of bridge equipment.
Our company JBEC can do the design, fabrication and installation of steel bailey bridge for you according to your requirement, and we
have much experience in this field. Our steel bailey bridge has a wide range of uses in the following areas:
· Road Bridges
· Pedestrian Bridges
· Railway Bridges
· Steel Truss Bridge
· Beam Bridges
· Steel Bailey bridge
· Structural Steel Box Bridge
· Highway Bridges
· Composite Beam Bridge
· Cable-Stayed Bridge
· Floating Pontoon Bridge etc.
Fully galvanized for long life and minimum maintenance
3.7m-4.2m single lane
Durbar finish or factory applied anti-skid surfacing
Simple, cost effective foundations
We are hornoed, from material purchase and tracing, shop drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, to have separated department to strictly control process, quality and traceability, so that the perfect structural steel bridge can be made.
Meanwhile various standards ranging from Europe EU Standard, America ASTM Standard, British BS Standard, Australia AS/NZS Standard structural steelworks fabrication are also available.
