Lightweight Structure Temporary Usage Military Bailey Bridge For Emergency Application

Large Image : Lightweight Structure Temporary Usage Military Bailey Bridge For Emergency Application

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	FAMOUS
Certification:	ISO9001:2008, SGS, etc.

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD1000~USD1200 per ton
Packaging Details:	Seaworthy packings into container or bulk vessel
Delivery Time:	Based on client's needs
Payment Terms:	L/C,T/T
Supply Ability:	600,000 tons per Year

Contact Now

Detailed Product Description

Model Number:	CB100(321-Type)&HD200	Material:	Q345B Steel
Surface Treatment:	Painted Or Hot Dip.etc	Size:	According To Client's Need
Installation:	Lifted Into Place By Hand Without Crane, Easier Construction.etc	Multi-use:	Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic.
Carry Capacity:	Resist Strong Wind And Earthquake, Bears Heavy Snow.etc	Grade:	Q345B-Q460C
Q345B-Q460C:	AISI, ASTM, BS, DIN, GB, JIS	Color:	Army Blue, Light Gray, Hot Galvanized Or Customized.etc
High Light:	prefabricated bridges , structural steel bridge

Lightweight Structure Temporary Usage Military Bailey Bridge for Emergency Application

Bailey bridge(also be named Compact panel bridge) is a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds and usage of Temporary Bridges, emergency bridges and fixed bridges. Using the compact panel bridge equipment, the suspension bridges of varied span can be erected.

Description of Military Steel Bailey Bridge

Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Military bridge,

temporary bridge that must usually be constructed in haste by military engineers, from available materials, frequently under fire. The earliest

types historically were pontoon bridges—i.e., floating bridges that rest on stationary boats. Pontoon bridges were constructed in ancient times

by Persians, Greeks, Romans, and Mongols, the most famous being Xerxes’ 2-mile (3-kilometre) span over the Hellespont (Dardanelles). Th

Romans, however, frequently built more durable military bridges, notably Julius Caesar’s timber crossing of the Rhine River and Trajan’s timber-

arch span of the Danube.

Specification of Military Steel Bailey Bridge

Product Name	Specification of Compact 200-type Military Bailey bridge
Width	7.3M, 4.2M, 7.56M, 4M etc
Maximum span	64meter single span or 200m multi span
Bridge deck	Steel bridge panel
Steel grade	Q345B or S355JR etc
Loading capacity	20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion	Original painted
Advantages	Price effective and technical full analysis and supports

Military pontoon bridges are usually built either by successively extending outward from the shore or by constructing whole sections as rafts and

floating them into position. Truss bridges, for use where riverbanks are steep or navigation must be kept open, are made up in panels readily

bolted together.

Application

Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of

types dependent upon your specific bridge requirements. Our services include the complete complete bridge design and construction as per

Client's choice of bridge features, and the scope of various bridges are as follows:

· Road Bridges

· Pedestrian Bridges

· Railway Bridges

· Steel Truss Bridge

· Beam Bridges

· Steel Bailey bridge

· Structural Steel Box Bridge

Competitive Advantage

Heavy loading capacity

Great stability

Long fatigue life

Light weight

Low cost

Easy and fast erection

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design

inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time,

helping you avoid costly construction delays.

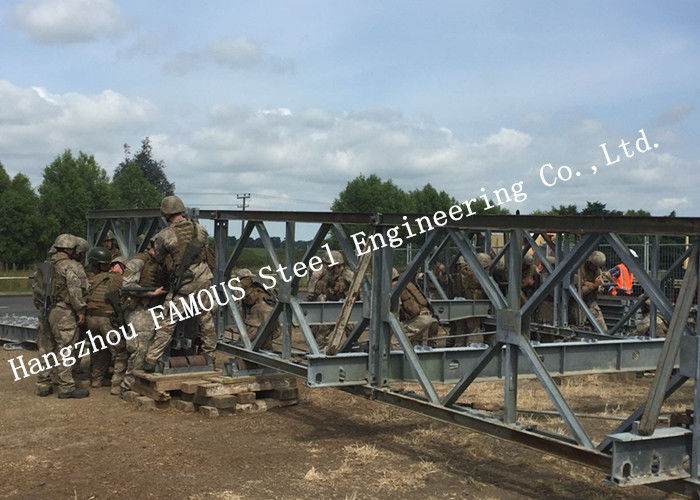

Lightweight Structure Temporary Usage Military Bailey Bridge For Emergency Application 0

History of Bailey bridge

By the 17th century, bridging equipment was part of the train of European and Turkish armies, with pontoons fashioned not only of timber but

also of leather, copper, and tin. Pneumatic pontoons with steel roadways made their appearance during World War II.

Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us

Tag:

Contact Person: Shayne

Tel: +8618857115398
