Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board

China Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier
Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board supplier

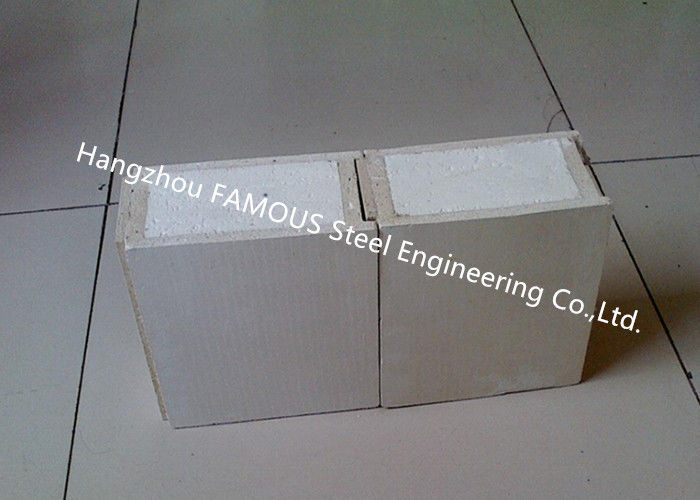

Large Image :  Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Hongfeng
Certification: ISO9001:2008;CE
Model Number: OWN

Payment & Shipping Terms:

Minimum Order Quantity: 1 20'GP
Price: USD8~USD15 per Square Meter
Packaging Details: Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel )
Delivery Time: Based on client's needs
Payment Terms: L/C,T/T
Supply Ability: 200,000 Square Meter per Month
Contact Now
Detailed Product Description
Features: Fire,Water,Sound,Weather Proof ,etc. Panel Thickness: 25-300mm
Mgo Thick: 0.35mm Steel Color: White,Gray,etc
Core Material: EPS,XPS,PU,PUR,PIR,FIBER GLASS,CEMENT,etc Applications: Ceiling,Wall,Floor,Partitions,etc
Type: Sandwich Panel Certificate: ISO 9001,CE,ASTM,EU,US,AU,NZS,etc



Superior Fire Rating A1 Mgo Board Skins Magnesium Oxide Structural Insulated Panels (MGOSIPs)

1.Products Introduction:



      Magnesium Oxide SIPS panels (MGO) are the next generation of SIPs having a superior fire rating to traditional fiber cement and OSB SIPs panels. MGO panel skins are available in thickness of 6 mm to 30 mm. MGOSIPS panels can be used for basement walls and waterproofed with the same methods and materials used to waterproof a concrete basement wall. Innova MGOSIPS are a healthy choice as they contain no organic solvents, heavy metals, asbestos, oils or other toxic ingredients and are classified as a “Green Building Material.” MGO will not support black mold growth and has a high resistance to moisture absorption making it an ideal choice for wet humid environments. MGO is strong, durable and impact resistant, arequirement for hurricane prone areas. With the use of a MGO SIPS panel, drywall can be eliminated which further reduces the time and cost of construction. The exterior surface of MGO SIPS can be painted or coated with a synthetic stucco finish, lap siding, brick veneer, stone and a host of other suitable exterior finishes. MGO SIPS have superior loading, fire ratings and acoustic values over OSB and fiber cement SIPS. NOT ALL MGO BOARD PRODUCTS ARE THE SAME,  FASEC uses only the finest MGO materials available.

       MGO Sandwich Panel are an essential part of water managed walls. When water passes through the exterior cladding, these weather-resistive barriers serve as the second layer of moisture protection, deflecting water away from sheathing and keeping it from further penetrating the wall system. The wraps also serve as a barrier to air infiltration, improving energy efficiency and keeping moisture out of the wall system. Plus they breathe to allow moisture vapor to escape, facilitating the drying process. Our comprehensive line of building wraps ensures you will find a product that is an excellent fit for your specifications.

        It is produced through a special pressing process, using two sides of magnesium oxide board and taking polystyrene foam, rock wool, perlite board etc, as its core material. It has many advantages, such as light weight, heat preservation, fireproof, waterproof, environmental protection, energy conservation, long service life, and so on. It can be used for walls and partitions. It also can be used to the the heat preservation layer of interior and exterior walls, all kinds of air duct etc.It is a new kind of building materials for the current market, and will have a good future.

Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board



 2.Specifications:

Composition Face board Core Back board
Material Mgo board EPS/XPS/PU/PIR/FIBER CEMENT  Mgo board
Max width 1220mm 1220mm 1220mm
Max length 3000mm 1220mm 3000mm
Thickness 3~20mm 20~150mm 3~20mm
Standard size 1220*2440mm, 1220*2400mm, 1200*3000mm, or customized



3.Applications :



• Floor System:
It’s much suitable for the floor plate of factory, workshop, warehouse, etc.
• Roof System:
Solving the problem of roof leakage, reducing the use of roof beam-column and improving security.
• Interior Partition System:
It has been widely applied to interior partition of high-rise buildings, with the advantages of excellent fire-proof, best hanging force and easy installation.
• Exterior Wall& Villa:
It’s widely applied to various modular house, low buildings, apartment, villas, and city house, etc.



4.Advantages:



 • Energy-saving:
Heat-insulation and preservation, keep at an invariable temperature level.
• Easy installation:
Easy to install, convenient for wire groove and water pipe inbuilt, and casual for decoration.
• Shorten construction time:
For the same construction work, 3 workers can finish within 60minuts with this panel, while for traditional brick 12 workers 60 minutes.
• Saving space:
It can averagely increase extra 4.16 m2 area for100 m2 house.
• Saving cost:
Both labor cost and construction structure cost can be greatly saved, for it’s easy installation and light weight.
• Environmental protection:
raw materials do not include any harmful substances.
• High security performance:
It has higher anti-seismic and anti-impact performance than traditional brick and other construction materials;
• Waterproof and Fire-proof
• Sound insulation

Skins Magnesium Oxide Structural Insulated Sandwich Panels MGOSIPs Fire Rating A1 Mgo Board
