Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems

China Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems supplier
Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems supplier Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems supplier Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems supplier Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems supplier Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems supplier

Large Image :  Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems

Product Details:

Place of Origin: Zhejiang, China
Brand Name: FAMOUS
Certification: ISO9001:2008, SGS, etc.
Model Number: OWN

Payment & Shipping Terms:

Minimum Order Quantity: 10 cubic meters
Price: USD120-160 per cubic meter
Packaging Details: Containerized packing or bulk ship, or as buyers' requirements.
Delivery Time: Based on client's needs like one month
Payment Terms: L/C,T/T
Supply Ability: 400000 cubic meters per Year
Detailed Product Description
Raw Material: Silica Sand, Cement, Lime, Aluminum Powder, Etc. Dry Density Grade: <=625kgs/cbm
Surface Treatment: Painted Treatment Dry Shrink Coefficient: <=0.5
Color: White Type: Wallboard Or Roofboard
Application: Interior Walls, Exterior Walls Installation: Easy
High Light:

pre engineered buildings

,

multi storey steel frame buildings

Waterproof Factory Precast Lightweight FASEC Prefab-I Panel For Pre-engineered Building Cladding Systems

Quick Detail:

1. Lighter weight
2. Self-Thermal insulation
3. Easy to install

4. High-performance and lightweight

5. High productivity competitive price

6. Autoclaved aerated concrete panels and blocks

7. Waterproof



About FASEC Prefab-I Panel:

FASEC Prefab-I panel is one kind of multi-porous concrete forming board which is made of silica sand, cement, lime, aluminum powder, etc. It is the main raw material that is cured under high temperature and high pressure steam with double-layer bidirectional steel mesh in the function of rust and anti-corrosion treatment inside. It can be used not only as the wall material such as the inner wall and the outer wall of the main building, but also the roof and floor panels. While the thin plate type like 50mm thickness can be used as the thermal insulation and fireproof board, which is a new type of building material with superior performance. It can be widely used in concrete structures and steel structure residential, office buildings, factory interior and exterior walls, slabs, roof panels, firewalls, explosion-proof walls, steel beams and columns fireproof panels, sound insulation walls, renovation of old buildings.



According to the usage, the board can be divided into partition wall panels, exterior wall panels, roof panels and floor panels. The reinforcement of each panel is determined according to the design load, material thickness and length. Generally available in thickness is from 50mm to 300mm, at intervals of 25mm. The length can be up to 6 meter.



Specification:

Length(mm) 1800—6000
Breadth(mm) 600
Depth(mm) 75, 100, 125, 150, 175, 200, 250, 300,120, 180, 240




The main performance are as follows:

  • Lightweight: The specific gravity is only 500-650kg/m3, which is only 1/4 of concrete and 1/3 of clay brick. It is known as concrete floating on the water surface. The design value is 650kg/m3.
  • Fire resistance: 100mm thickness board can reach 4 hours, and 125mm thick can reach 4 hours or more.
  • Insulation: The thermal conductivity is 0.09-0.114, and the thermal insulation effect of the 125mm thick material can reach the ordinary 370mm thick brick wall. It is a new type of building material that can achieve more than 65% energy saving in buildings with a single material.
  • Sound insulation: The sound insulation index of 100mm thick board reaches 40.8dB (transmission loss).
  • Seismic resistance: It can adapt to large inter-layer angular displacement, allowing the inter-layer displacement angle to be 1/150, which is 1/120 when using special joints. In the case of all joints, the board peeling does not occur when the inter-layer displacement angle is 1/20.
  • Environmental protection: no radiation, its hourly exposure is 12γμ / h, equivalent to the level on the outdoor grass.
  • Bearing capacity: The interior of the board is equipped with double-layer and two-way steel mesh, which can provide external wall board, heat insulation board, roofing panel, floor slab, decorative board and so on.
  • Crack resistance: The FASEC Prefab-I panel is reinforced by anti-rust treated steel bars. It is cured by high temperature, high pressure and steam. It has the smallest shrinkage ratio in inorganic materials and is caulked with special polymer adhesive to prevent cracking.
  • Convenience: The FASEC Prefab-I board is processed by the actual measurement on site and is prefabricated in the factory. It has high precision, which can be planed, sawn and drilled. Dry work, easy installation, simple process, eliminates the structural columns, waist beams and plastering of traditional walls, greatly shortening the construction period, improving efficiency and construction quality.
  • Economical efficiency: FASEC Prefab-I is used as the wall material, which can effectively increase the building area of the house, reduce the energy consumption, and meet the national building energy-saving standards. Under the same sound insulation and fireproof requirements, the Prefab-I board has the smallest thickness and does not need some auxiliary components such as the structural column and the waist beam, which can reduce the wall load and thus reduce the construction cost.
  • Creativeness: FASEC Prefab-I board can be made into art pattern board. After the material is installed, it can directly hit brick, plaid, horizontal, imitation brick and imitation stone.
  • Universality: It can be widely used in concrete structures and steel structure residential, office buildings, factory interior and exterior walls, slabs, roof panels, firewalls, explosion-proof walls, steel beams and columns fireproof panels, sound insulation walls, renovation of old buildings.
  • Diversity: 50mm thin plate and 37mm ultra-thin plate (can be used for exterior wall insulation board, fire board).
  • Quickness: Eliminate the mixing, masonry, plastering, steel, form work, concrete and other types of work in the traditional block process. Just the plate installer can do all the work, avoiding the conflicts and mutual constraints of the work.

Advantage:

Thermal Insulation:

When used to build external walls,our products meet all strict requirements made by various countries without use of any other auxiliary thermal protecting materials. Tests show that products with a thickness of 4-5cm perform the same function of thermal protection as one layer of common blocks; with a thickness of 7-8cm.provides the same level of thermal protection as bricks double the thickness. Therefore it is not only a material that can be used to structures, it is also a high quality thermal material.

Fire resistance:

The raw materials used in our products are absolutely non-combustible. Experiment results show that 10-cm thick walls made of our factory could stand against fire for at least 4 hours. Hence,our products have been adopted to make fireproof walls.

Sound Insulation:

Test results shows that our products have excellent acoustic performance. Walls made of us could reduce the noise range from 30-52dB depending on the thickness of the walls and different surface disposed.



After combining the FASEC Prefab-I panel and steel framing together, as well as considering other pipelines and envelops etc. treatment, FASEC steel modular house can be complete in much more time saving way. Compared to traditional concrete brick buildings, FASEC house can save as much as nearly half construction period.

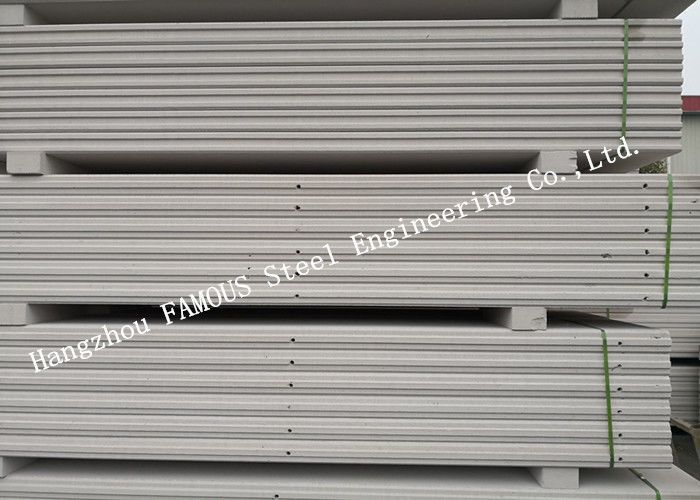

Lightweight FASEC Prefab - I Panel For Pre-engineered Building Cladding Systems 0
