Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer

Certification
China FAMOUS Steel Engineering Company certification
China FAMOUS Steel Engineering Company certification
Good team members always offer budget in time and answer questions with patience, great job!

—— Donald Mcwayne

I am feeling fully respected when taking with Grace and she always gave the best advice. The first batch of the bridge panels got are great too. thanks all.

—— Joseph Alexander

I'm Online Chat Now

Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer

China Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer supplier
Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer supplier Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer supplier Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer supplier Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer supplier Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer supplier

Large Image :  Fresh Fruit Vegetable Prefabricated Modular Cold Rooms 960mm Width Cold Storage Freezer

Product Details:

Place of Origin: Hangzhou,China
Brand Name: HongFeng
Certification: ISO,SGS,CE,COC,etc.
Model Number: 1150mm

Payment & Shipping Terms:

Minimum Order Quantity: 100 Square Meters
Price: 6-12USD Per Square Meter
Packaging Details: Standard seaworthy packing
Delivery Time: 7-15Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200,000 Square Meters per Month
Detailed Product Description
Type: Ceiling Panels Used For: Steel Buildings
Density: 12kg Panel Material: Steel Sheet
Core Material: Polystyrene Material Usage: Steel Buildings
Thickness: 75mm, 100mm,150mm, 200mm Surface Treatment: Galvanized
High Light:

modular cold rooms

,

cold storage freezer

Fresh Fruit Vegetable Prefabricated Modular Cold Rooms for Sale 960mm Width

Product Description
PU sandwich panels is a kind of board used for enclosing structures, which has good heat insulationand higher intensity.It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems. Designed scientifically and easy to use. It is a new type of heat insulation material for lower construction cost.Panels are in multiple varieties and specifications to meet the need of various sites and projects.
Our brand Polyurethane sandwich panels and doors are widely used in food production, quick-frozen food processing, aquatic product processing, crop storage, pharmaceutical, purification, logistics center and so on. Now the products are distributed all over the country and export to Japan, Thailand, Korea, the Philippines, Australia, Israel, Canada, South Africa and other countries.

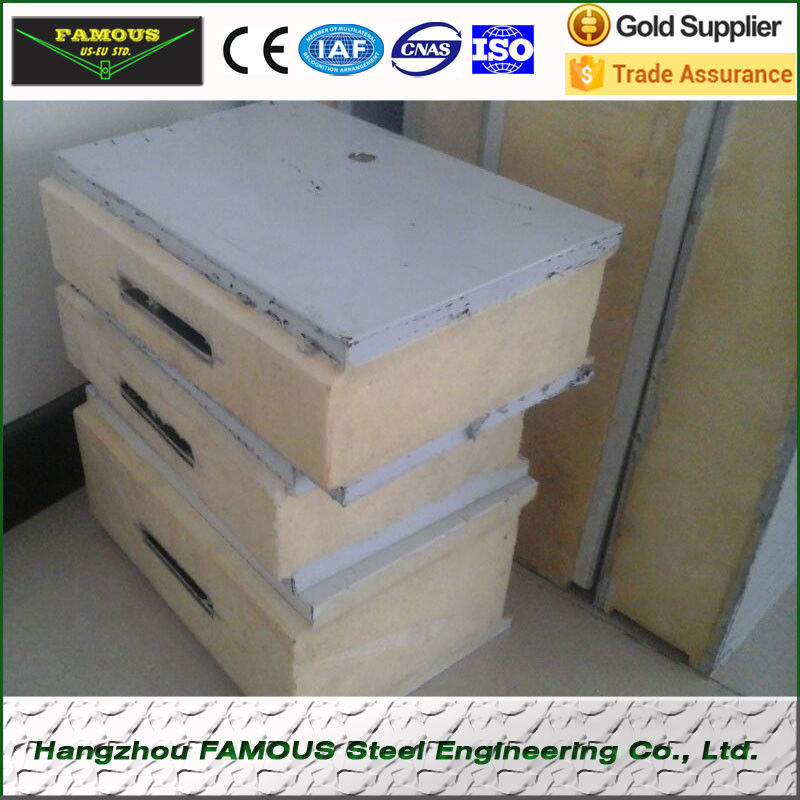

Polyurethane (PU)  Panel
Polyurethane (PU) panel ( insulated panel),the sandwich board rigid polyurethane (PU) foam high pressure, both inside and outside the metal surface layer, the option of color-coated steel plate, PPGI ,embossed aluminum, stainless steel plate and galvanized steel and other materials,PU cold storage is generally modular cold storage, from polyurethane base plate using advanced eccentric rotary combination lock to ensure that the cold intensity.
PRODUCT

Cold Room Polyurethane ( PU) Sandwich Panels

Thickness

50, 75, 100, 150 , 200 mm

Density

38 - 40 – 43 – 46 kg / m3

Width

960mm

Joint

Camlock (tongue and groove)

Plate

External is color steel or stainless steel or Aluminium (Stucco embossed or pre-painted)

Usage

Wall & Floor & Ceiling

Door

Sliding door and Swing door













Characteristic Good temp-keeping and heat insulation




Walk in freezer Size and temperature can be made according to the customers' requirements
0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezer Storage
-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer


DETAILS OF THE PANEL JOINT

Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
* Cam-lock design fastener to install with the cold room tightly and strongly

* Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result


DOORS

1). Swing door and Sliding door available.
2). Swing door: Manual, Automatic available etc.
3). Door panel made with special pressing technology PU material.
4). Door frame: color steel or stainless steel.
5). With Heater and anti-stuck system.

Hinged doors are of various types such as single leaf or double leaf , overlapping or flush . These doors are
always open in the outward direction towards either left or the right .





ABOUT THE GROUP

Hangzhou FAMOUS Steel Engineering Co.,Ltd. focus on various structural steel construction and steel-related

products supplying.  Under support of structural giant Hongfeng Industrial Group, FAMOUS received a lot of

foreign projects from project engineering, fabrication, logistic and installation guidance etc. and become more

professional in foreign project operation, specially in US-EU standard engineering and project management aspects.

The company covers an area of 360,000 sq.m. with registered capital of 100 million Yuan and the total assets of 970

million Yuan. It owns advanced professional production equipment for the all automation production line of H type

that is most advanced at home, pipe truss structure, boxbeam production lines, CNC hydraulic punching posterior

cutting C type steel, Z type steel production lines, vertical seam 360-degree whipstitch roof board of hidden button

type, weather board production lines and metal sandwich panel production lines, etc.
