Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent

China Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent supplier
Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent supplier Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent supplier Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent supplier Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent supplier

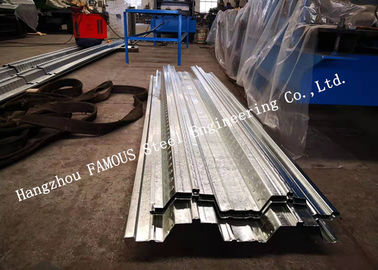

Large Image :  Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent

Product Details:

Place of Origin: China
Brand Name: FASECbuildings
Certification: ISO, CE etc
Model Number: Type 2

Payment & Shipping Terms:

Minimum Order Quantity: 1000sqm
Price: USD10-20/sqm
Packaging Details: seaworthy packings
Delivery Time: 1-4 weeks per production plan
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 50000sqm per month
Detailed Product Description
Material: Steel Decking Sheet Type: Comflor 60 Profile
Color: Gray Zinc: 350g/m2
Surface: Galvanized Width: 1050mm
Thickness: 2.1mm Surface Treatment: Galvanized
Unpropped Spans: Up To 4.5m
High Light:

composite steel floor deck

,

composite metal floor decking

Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent

ComFlor 60 composite floor profile offers the ultimate in lightweight steel decking for all multi-rise buildings. It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that is easy to install. The state-of-the-art profile has been developed using modern roll-forming techniques. Capable of unpropped continuous spans to 4.5 metres and propped spans to 6.8 metres.



ComFlor 60 has been much copied but never bettered, as the original new generation round shouldered trapezoidal combined 60mm profile. This design is exceptionally resistant to compressive buckling resulting in superior span capability compared to traditional decks.



Long span and versatile.
Low concrete and steel usage.
Central stud placement.
Closed ends.
Better for Health and Safety.



Specifications:

Name steel decking formwork
Base material Hot Dipped Galvanized Steel Sheet
Steel Grade SGCC
Yield strength Q235 or Q345 Refer to Standards GB/T1591-2008
Thicknes 0.8 -1.5mm(normal 0.8,1.0,1.2)
Zinc coating 60-275g/m2
Wave Height 51mm-76mm
EffectiveWidth 688mm-940mm



Length

0-11.8m
Less than 5.8m load in 20GP
5.8m-11.8m load in 40GP
Packing Bundle ,water-proof package with steel belt
Delivery time

20 days after confirmation





Following are some of typical profiles available in market:

  1. Closed type galvanized steel floor decking
YXB51-200-600
YXB65-186-558
YXB60-253-760
YXB60-180-540
YXB51-200-600
YXB65-186-558
(2) Opened type galvanized steel floor decking YX75-230-690
YX75-200-600
YX38-152-915
YX51-305-915
YX76-305-915
YX75-230-690
YX75-200-600
YX51-250-750
YX51-335-1005
YX76-344-688
(3) swallow tail galvanized steel floor decking YX51-200-600
YX51-190-760
YX51-200-800
YX51-200-600



Advantages:

Greater Durability
The steel base product has a Z350 zinc-coating mass. It was selected to provide superior corrosion protection in service, directly as a result of increased coating mass. FAMOUS steel is also available with a Z450 coating mass with a 15 year warranty*. Comprehensive shear stud welding tests across a range of base thickness with both coating masses were undertaken to ensure consistent results can be achieved on site.

Unbeatable Strength
Steel and concrete composite slabs are lighter and stronger than most conventional slabs. The steel decking provides tensile reinforcement, combining with the compressive strength of the concrete for an all round stronger slab. Steel decking profiles are designed to prevent any longitudinal slip between the steel and concrete in the slab itself, and any transverse movement between the slab and supporting beams.

Greater Savings
The weight savings achieved in composite slabs can be passed on to other areas of the design, such as foundations. And because steel decking acts as permanent formwork, it can significantly reduce the need for propping or temporary formwork -saving both time and money.



While FASEC Rebar-truss triangle welded metal decking system adapts rapid construction requirements of the main steel structure and provide fast work procedures. It can save a lot of construction time compared to traditional floor decking system. It can also improve the rigidity of the floor and save the amount of steel and concrete, so as to reduce the project budget.



The Surface embossed increase the bonding of floor deck and concrete, make the floor deck system has high-strength bearing capacity. It is totally fire-proof and can span long without middle propping.



So from cost saving and time saving view, the FASEC rebar-truss triangle welded metal decking system is better choice. However, in much of ready design, the deck is already designed and in avoiding of redesign, recalculation and re-submit/approval, we can also offer various customized steel floor deck profiles to cater for various contractors’ need, meanwhile we will offer various technical support in the aspects of load span and stress analysis etc.



Following are some typical detail:

Galvanize Composite Floor Deck Steel Decking Slab Comflor 60 Profile Equivalent 0
